Description

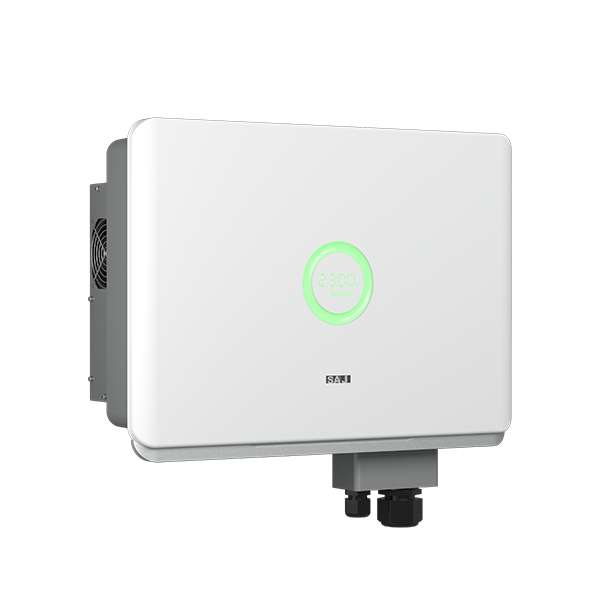

The SAJ R6 Series 5kW String Inverter is a high-efficiency, single-phase solar inverter engineered for modern rooftop solar systems. With 3 MPPTs, built-in WiFi, and an integrated DC isolator (DCI), it ensures maximum energy yield, safe operation, and remote system monitoring — all in a compact, user-friendly design.
Key Features:
-
5kW AC output – Ideal for residential solar systems
-
3 MPPTs – Superior performance across multi-orientation rooftops
-
Built-in WiFi – Real-time remote monitoring via the SAJ Home app
-
Integrated DC isolator (DCI) – Safety-compliant and installer-friendly
-
High conversion efficiency (>97%) – Maximize your solar investment
-
IP65-rated – Suitable for outdoor or indoor use
Description
| Brand | ["Saj"] |
|---|---|
| Rating (kW) | 5 |
| Max. DC-Input Capacity | 7500 |
| MPPT | |
| Display Screen | No |
| DC Switch | Yes |
| Use Application | Residential |
| Type | String |
| Phase | Single Phase |
| IP Rating | 65 |
| CEC Model | R6-5K-S3 (AS4777-2 2020) |
| Weight (kg) | 17.30 |
| Qty per Pallet | 24 |
| Pallet Weight (kg) | 526.80 |
| Dimension (L*W*H mm) | 391 * 202 * 532 |
| Pallet Dimension (L*W*H mm) | 1140 * 1140 * 2000 |
| Product Warranty (Years) | 10 |
