Description

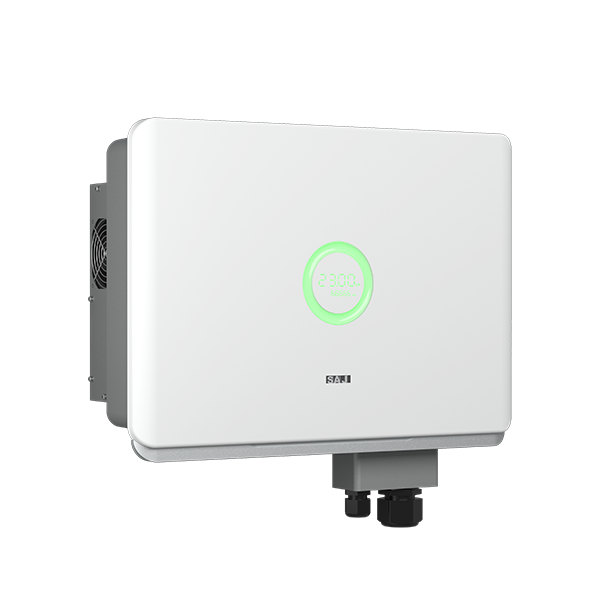

The SAJ R6-8K-T2 is a powerful and efficient 8kW three-phase on-grid solar inverter, ideal for residential and light commercial solar installations. Equipped with dual MPPT trackers, it maximises energy harvest by supporting flexible panel configurations and a wide MPPT voltage range (160–950V).
This inverter includes built-in Wi-Fi, Ethernet, and Bluetooth connectivity, allowing real-time monitoring and remote system management via the SAJ eSolar mobile app. With a maximum efficiency of 98.2%, it delivers reliable and consistent performance across various conditions.
Key safety features include DC Insulation Resistance Detection (DCI), surge protection, and optional Arc Fault Circuit Interrupter (AFCI), ensuring enhanced protection and compliance. Housed in a durable IP65-rated enclosure, the R6-8K-T2 is suitable for both indoor and outdoor use, and can operate in temperatures ranging from -40°C to +60°C.
Weighing only 15kg, this inverter offers easy installation and low maintenance, backed by a solid 10-year warranty.
Features:
-
8kW three-phase inverter with dual MPPT
-
Integrated Wi-Fi, Ethernet & Bluetooth
-
DC insulation resistance detection (DCI)
-
Wide MPPT voltage range (160–950V)
-
High efficiency (up to 98.2%)
-
IP65-rated for outdoor/indoor use
-
Smart monitoring via SAJ eSolar app
-
Lightweight and easy to install
Description
| Brand | ["Saj"] |
|---|---|
| Rating (kW) | 8 |
| Max. DC-Input Capacity | 12000 |
| MPPT | |
| Display Screen | LED+APP |
| DC Switch | Yes |
| WiFi | w/ wifi |
| Use Application | Residential |
| Type | String |
| Phase | Three Phase |
| IP Rating | 65 |
| CEC Model | R6-8K-T2-AUS (AS4777-2 2020) |
| Weight (kg) | 22.50 |
| Qty per Pallet | 12 |
| Pallet Weight (kg) | 241.20 |
| Dimension (L*W*H mm) | 558 * 235 * 430 |
| Pallet Dimension (L*W*H mm) | 1200 * 720 * 1986 |
