Description
If the grid connection exceeds the maximum value of 63 amps for direct measurement, special smart meters with measuring transformers are used. These are selected to match the grid connection and enable the usual accurate power recording. The hinged design with split-core enables quick and uncomplicated installation.
Product features Measuring transformer:
- Compatible with: Fronius Smart Meter IP
- Primary current: 250 A.
- Secondary voltage: 333 mV
- Accuracy: Class 1
- Cable length: 1.0 m
- Inner diameter: 24 mm
- Dimensions: 66.5 x 45 x 34.4 mm (400A) (H x W x D)

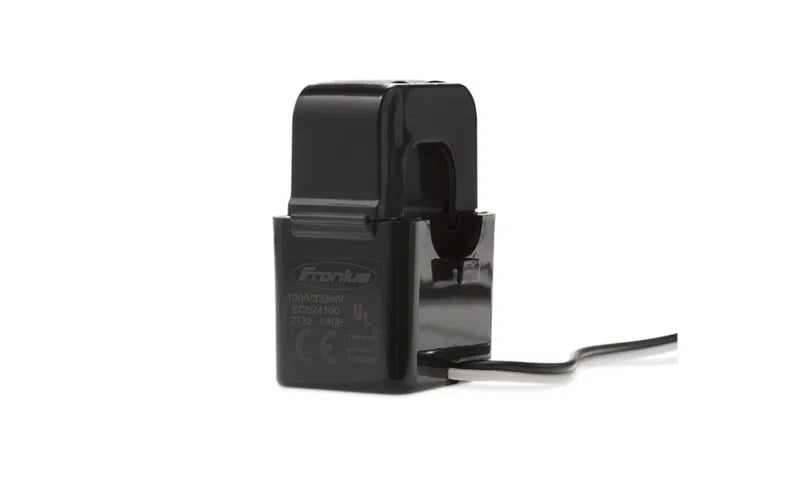

- Hinged measuring transformer for Smart Meter IP
- Art. no. 6651537
- Manufacturer No. 41,0010,0105
Description
| Brand | ["Fronius"] |
|---|
| Accuracy class | 1 |
|---|---|
| Type of construction | split core |
| Diameter (mm) | 24.00 |
| Primary current (A) | 250.00 |
