Description

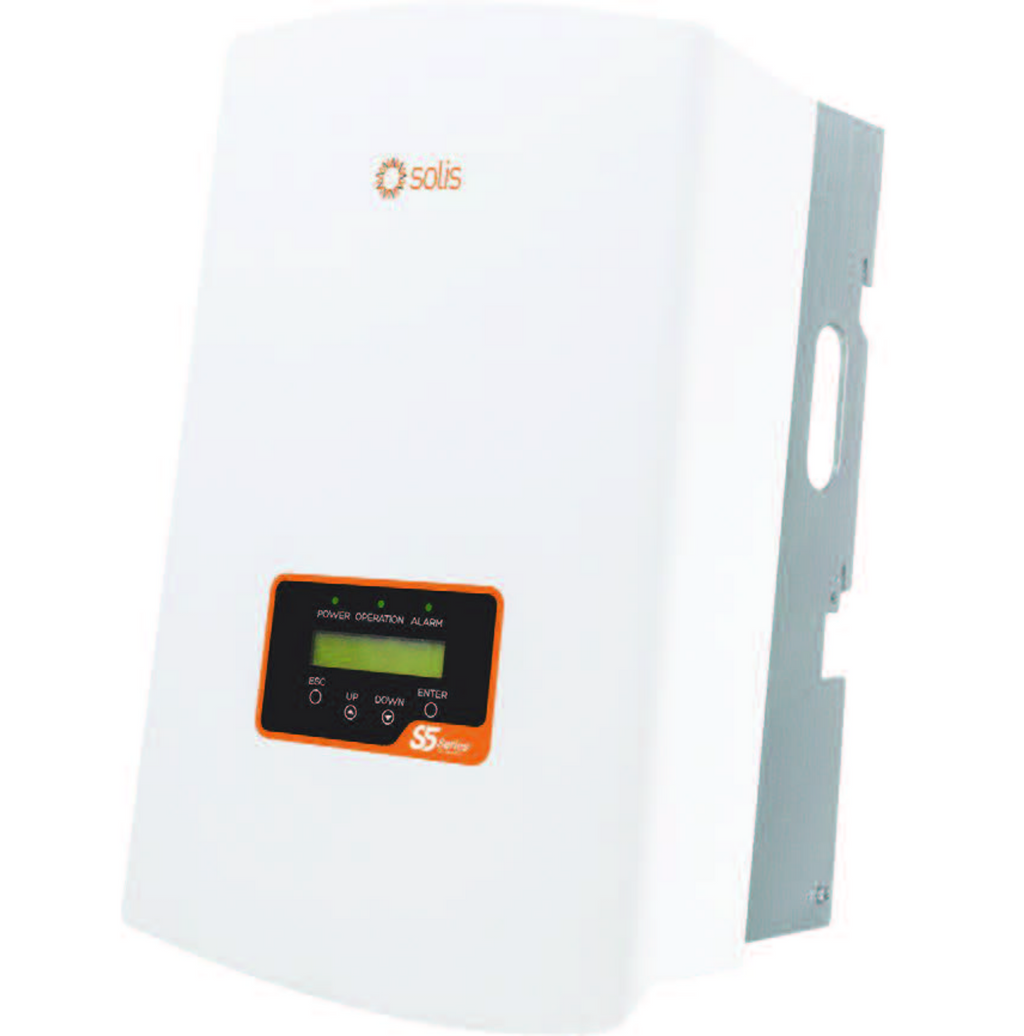

The Solis 5G 10kW 3-Phase Inverter is a robust and reliable solution for residential and commercial solar systems. With 2 MPPTs, integrated DC isolator, and built-in WiFi, this inverter ensures maximum energy yield, safety, and real-time monitoring — all in a sleek and compact design.
Key Features:
-
10kW output capacity – Perfect for medium to large solar PV systems
-
2 MPPT inputs – Optimize performance across multiple roof orientations
-
Built-in WiFi – Monitor your system remotely via Solis Cloud
-
Integrated DC isolator (DCI) – Ensures installation safety and compliance
-
High efficiency up to 98.7% – Maximize solar production and ROI
-
💧 IP65-rated enclosure – Dust & water-resistant, suitable for outdoor installations
-
📏 Compact, lightweight design – Easy mounting and space-saving
Description
| Brand | ["Solis"] |
|---|---|
| Rating (kW) | 10 |
| Max. DC-Input Capacity | 13000 |
| MPPT | |
| Display Screen | Yes |
| DC Switch | Yes |
| Built-in Battery) | No |
| WiFi | w/ wifi |
| Meter | w/o Meter |
| Use Application | Commercial |
| Type | String |
| Phase | Three Phase |
| IP Rating | 66 |
| CEC Model | S5-GR3P10K-AU (AS4777-2 2020) |
| Weight (kg) | 17.80 |
| Qty per Pallet | 6 |
| Pallet Weight (kg) | 201.68 |
| Dimension (L*W*H mm) | 310 * 219 * 563 |
| Pallet Dimension (L*W*H mm) | 800 * 640 * 1060 |
| Product Warranty (Years) | 10 |
