Description

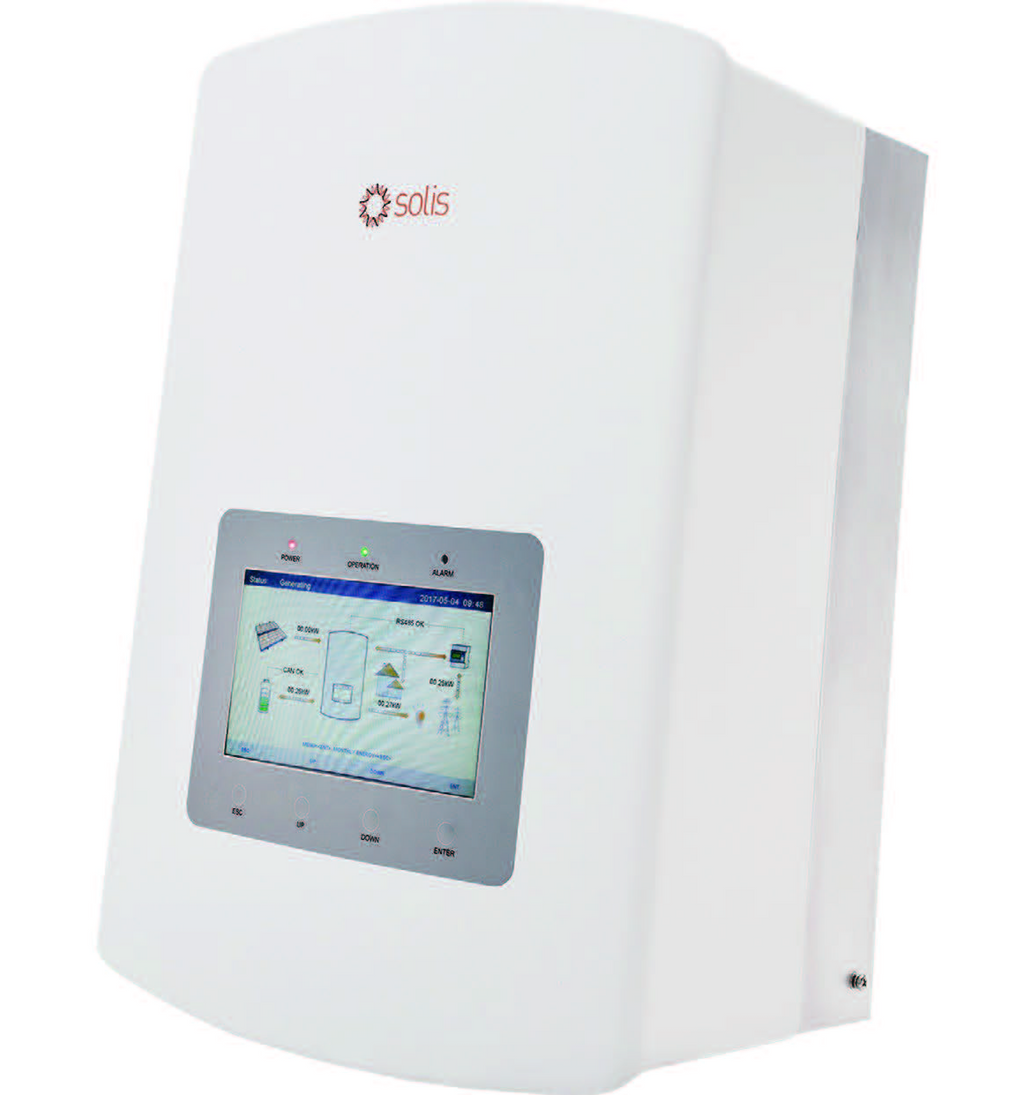

The Solis S5-EH1P5K-L is a low-voltage hybrid 5kW inverter designed for seamless energy management in single-phase residential solar systems. Equipped with 2 MPPTs, it maximizes energy harvest across varied roof angles. With built-in WiFi, a 1-phase energy meter, and compatibility with battery storage systems, this hybrid inverter enables real-time monitoring, export control, and backup functionality.
Engineered for performance and smart energy use, the Solis S5 Hybrid inverter is the ideal solution for homeowners looking to maximize solar self-consumption and prepare for future energy needs.
š§ Key Features:
-
5kW single-phase output ā Ideal for residential solar + storage setups
-
Hybrid-ready ā Works with low-voltage battery systems
-
2 MPPTs ā Optimized performance for multi-orientation arrays
-
Built-in WiFi ā Monitor via SolisCloud app
-
Includes 1P energy meter ā Enables consumption monitoring & export control
-
IP65-rated ā Suitable for indoor or outdoor installations
-
Smart grid support ā Meets global grid standards
Description
| Brand | ["Solis"] |
|---|---|
| Rating (kW) | 5 |
| Max. DC-Input Capacity | 10000 |
| MPPT | |
| Display Screen | Yes |
| DC Switch | Yes |
| Built-in Battery) | No |
| WiFi | w/ wifi |
| Meter | w/o Meter |
| Use Application | Residential |
| Type | Hybrid LV |
| Phase | Single Phase |
| IP Rating | 65 |
| CEC Model | S5-EH1P5K-L (AS4777-2 2020) |
| Weight (kg) | 18.30 |
| Qty per Pallet | 12 |
| Pallet Weight (kg) | 270.60 |
| Dimension (L*W*H mm) | 333 * 249 * 505 |
| Pallet Dimension (L*W*H mm) | 1030 * 1030 * 1060 |
| Product Warranty (Years) | 5 |
