Description

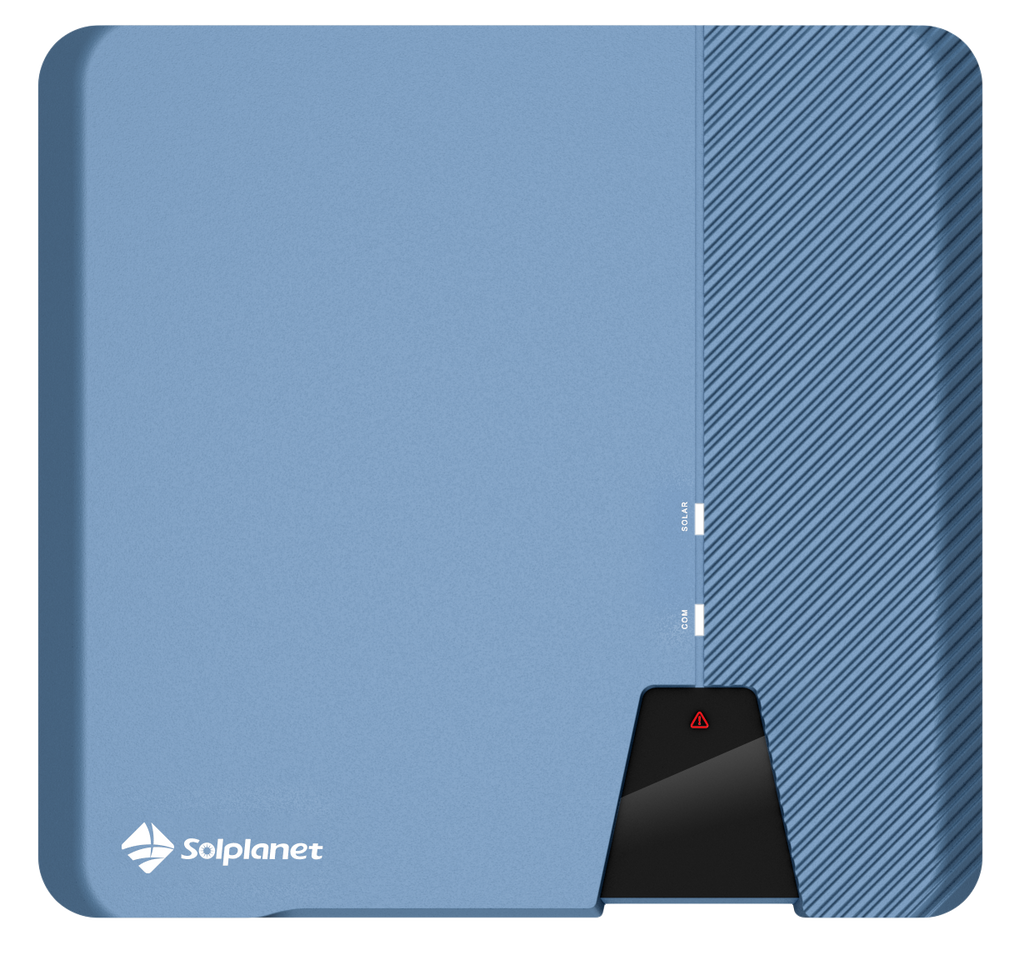

The Solplanet ASW10000-S-A is a high-performance 10kW single-phase solar inverter designed for residential and small commercial installations seeking intelligent energy management. With 3 MPPTs and 3 string inputs, it delivers excellent flexibility and solar energy yield, even on complex rooftops.Equipped with Wi-Fi connectivity, a built-in DC isolator (DCI), and 24-hour Smart Power Sensor (SPS) consumption monitoring, this inverter offers a complete energy optimization solution—helping users track, control, and maximize solar self-consumption in real time.
Key Features:
-
10kW single-phase output – Ideal for large homes or small businesses
-
3 MPPTs / 3 Strings – Precise power optimization for varied array layouts
-
24H Consumption Monitoring (SPS) – Tracks household load usage and solar generation
-
Built-in Wi-Fi – Enables remote monitoring via Solplanet Cloud app
-
Inbuilt DC isolator (DCI) – Ensures safety and quick installation
-
IP66-rated enclosure – Suitable for indoor and outdoor installations
-
Smart Grid Ready – Supports export control and energy compliance
Description
| Brand | ["Solplanet"] |
|---|---|
| Rating (kW) | 10 |
| Max. DC-Input Capacity | 15000 |
| MPPT | |
| Display Screen | Yes |
| DC Switch | Yes |
| Built-in Battery) | No |
| WiFi | w/ wifi |
| Meter | w/o Meter |
| Use Application | Residential |
| Type | String |
| Phase | Three Phase |
| IP Rating | 66 |
| CEC Model | ASW10K-LT-G2-A (AS4777-2 2020) |
| Weight (kg) | 16.00 |
| Dimension (L*W*H mm) | 503 * 183 * 435 |
| Product Warranty (Years) | 10 |
