Description

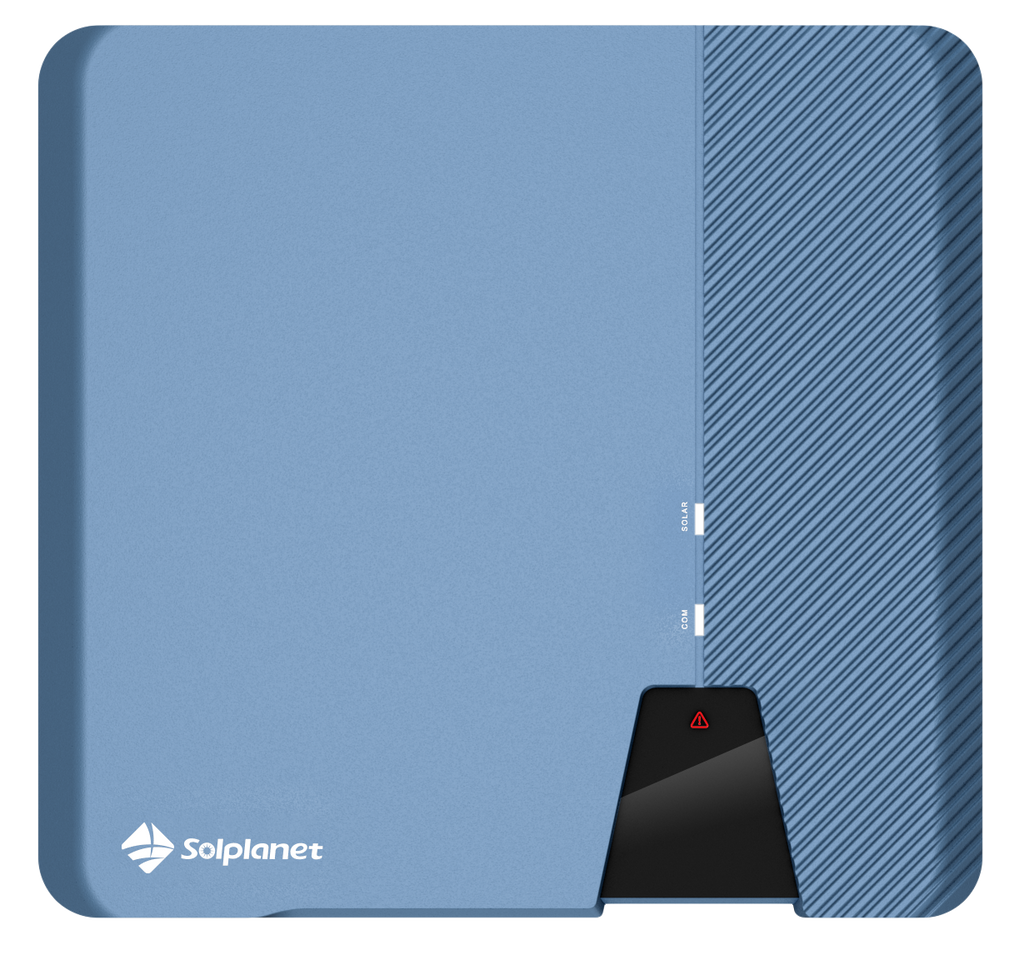

The Solplanet LT-G2-A 20kW 3-Phase Inverter is a powerful and reliable solution for commercial and large residential solar PV systems. With 2 MPPTs and 4 string inputs, it delivers exceptional flexibility and optimal performance for installations with varied roof orientations. The inverter includes integrated Wi-Fi for real-time monitoring via the Solplanet Cloud, and a built-in DC isolator (DCI) that ensures safety and easy compliance with installation standards.With its IP66 weatherproof rating, the LT-G2-A is built to withstand harsh environmental conditions, making it perfect for both indoor and outdoor installations.
Key Features:
-
20kW 3-phase output – Ideal for commercial-scale solar projects
-
2 MPPTs and 4 strings – Maximized energy production
-
Built-in Wi-Fi – Remote monitoring through the Solplanet App
-
Inbuilt DC isolator (DCI) – Enhances safety and simplifies installation
-
IP66-rated enclosure – Dust-tight and water-resistant
-
Smart grid ready – Compatible with export control and energy management systems
Description
| Brand | ["Solplanet"] |
|---|---|
| Rating (kW) | 20 |
| Max. DC-Input Capacity | 30000 |
| MPPT | |
| Display Screen | Yes |
| DC Switch | Yes |
| Built-in Battery) | No |
| WiFi | w/ wifi |
| Meter | w/o Meter |
| Use Application | Residential |
| Type | String |
| Phase | Three Phase |
| IP Rating | 66 |
| CEC Model | ASW20K-LT-G2-A (AS4777-2 2020) |
| Weight (kg) | 18.00 |
| Dimension (L*W*H mm) | 503 * 183 * 435 |
| Product Warranty (Years) | 10 |
