Description

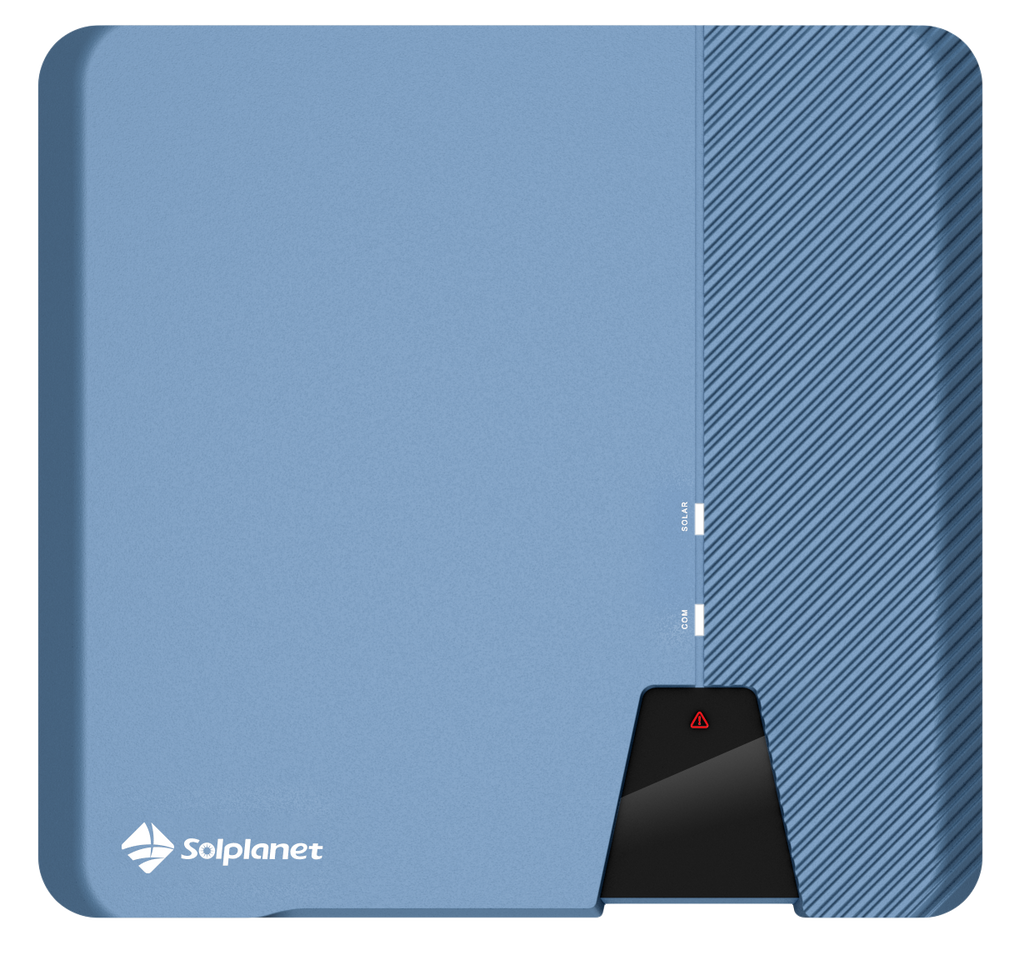

The Solplanet LT-G2-A 5kW inverter is a robust and high-performance three-phase string inverter, designed for residential and small commercial solar systems. With dual MPPTs, Wi-Fi connectivity, and a built-in DC isolator (DCI), this inverter ensures efficient energy conversion, flexible PV array design, and smart system monitoring.
Key Features:
-
5kW AC Output Power: Suitable for modern three-phase residential or small business installations.
-
2 MPPTs / 2 Strings: Maximizes solar output from diverse panel layouts or partially shaded arrays.
-
Integrated Wi-Fi: Real-time monitoring and performance tracking via Solplanet app and cloud platform.
-
Built-in DC Isolator (DCI): Improves safety and simplifies installation by eliminating the need for an external switch.
-
High Efficiency (up to 98.4%): Delivers excellent energy yield and long-term reliability.
-
IP66 Rated Enclosure: Weatherproof and dustproof, ideal for outdoor or indoor installation.
-
Smart Grid Ready: Supports export limitation, reactive power control, and other grid compliance features.
Description
| Brand | ["Solplanet"] |
|---|---|
| Rating (kW) | 5 |
| Max. DC-Input Capacity | 7500 |
| MPPT | |
| Display Screen | Yes |
| DC Switch | Yes |
| Built-in Battery) | No |
| WiFi | w/ wifi |
| Meter | w/o Meter |
| Use Application | Residential |
| Type | String |
| Phase | Three Phase |
| IP Rating | 66 |
| CEC Model | ASW5K-LT-G2-A (AS4777-2 2020) |
| Weight (kg) | 16.00 |
| Dimension (L*W*H mm) | 503 * 183 * 435 |
| Product Warranty (Years) | 10 |
