Description

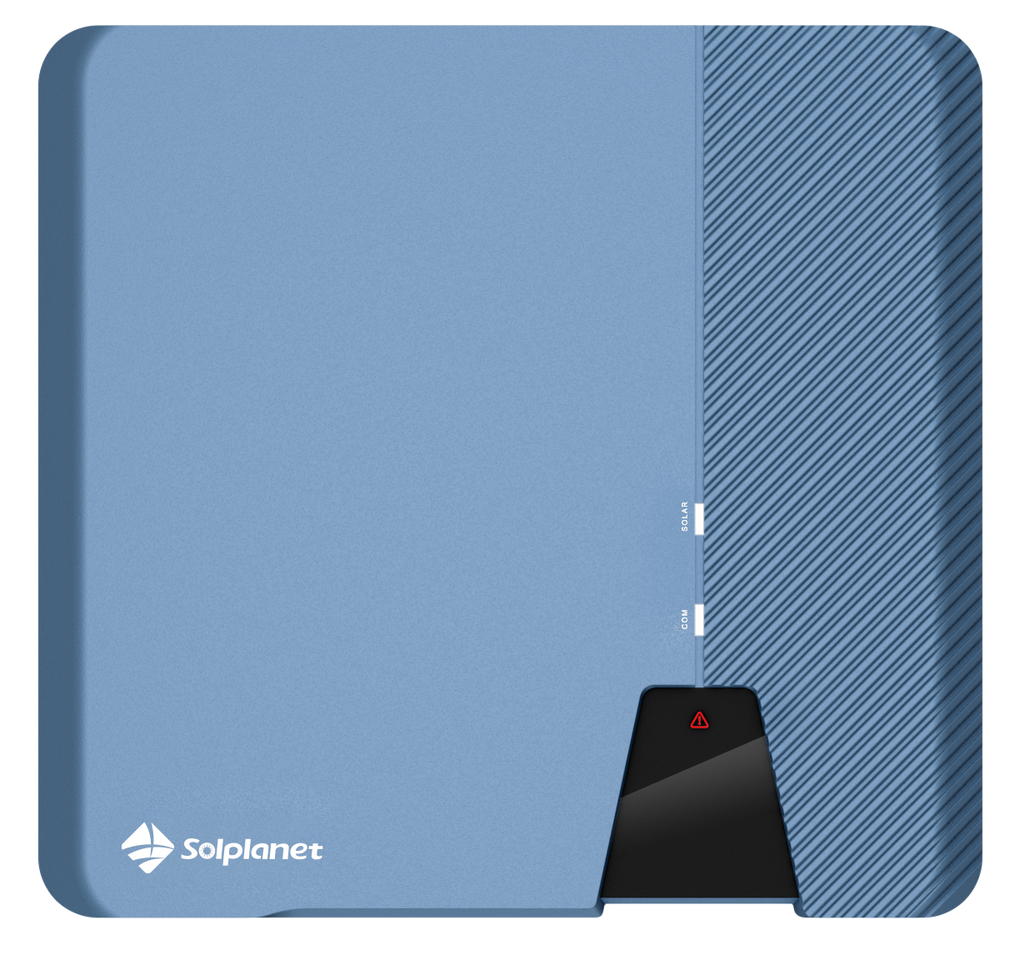

The Solplanet LT-G2-A 8kW is a high-performance three-phase string inverter designed for residential and small commercial solar PV systems. Featuring dual MPPTs, 3 string inputs, Wi-Fi connectivity, and an integrated DC isolator (DCI), this inverter delivers exceptional energy efficiency, system safety, and remote monitoring in one compact solution.
Key Features:
-
8kW Output Power: Suitable for medium to large home systems or small commercial rooftops.
-
3-Phase Output: Ensures balanced power distribution and compatibility with commercial electrical systems.
-
2 MPPTs / 3 Strings: Flexible configuration to optimize performance in complex or multi-angle roof layouts.
-
Built-in Wi-Fi Module: Real-time monitoring and performance tracking through the Solplanet app and cloud portal.
-
Integrated DC Isolator (DCI): Enhances system safety and simplifies installation by eliminating the need for external DC switches.
-
High Efficiency (up to 98.4%): Maximizes solar energy conversion and return on investment.
-
IP66 Rated: Dustproof and waterproof design for reliable indoor and outdoor use.
-
Smart Grid Ready: Complies with grid codes and supports export limitation and reactive power control
Description
| Brand | ["Solplanet"] |
|---|---|
| Rating (kW) | 8 |
| Max. DC-Input Capacity | 12000 |
| MPPT | |
| Display Screen | Yes |
| DC Switch | Yes |
| Built-in Battery) | No |
| WiFi | w/ wifi |
| Meter | w/o Meter |
| Use Application | Residential |
| Type | String |
| Phase | Three Phase |
| IP Rating | 66 |
| CEC Model | ASW8K-LT-G2-A (AS4777-2 2020) |
| Weight (kg) | 16.00 |
| Dimension (L*W*H mm) | 503 * 138 * 435 |
| Product Warranty (Years) | 10 |
