Description

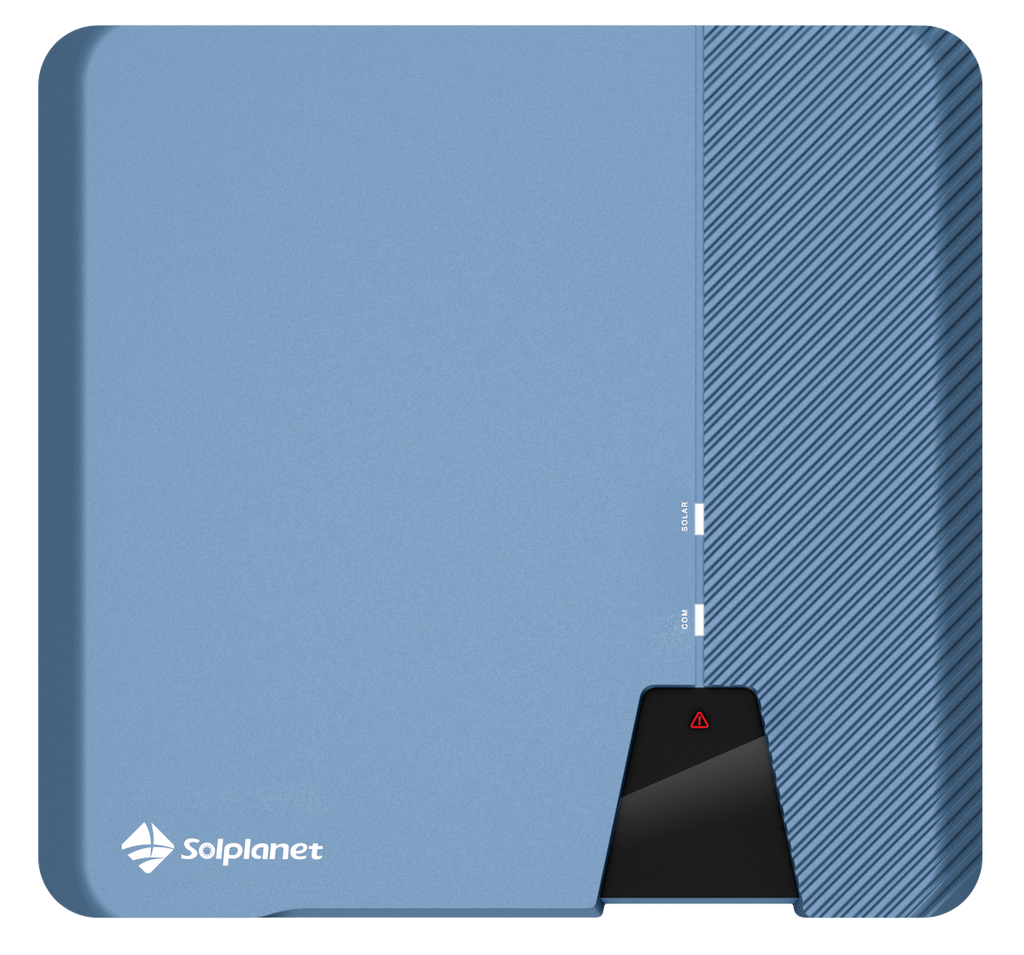

The Solplanet ASW5000-S-G2 5kW Inverter is a powerful and intelligent single-phase solar inverter designed for residential and light commercial PV systems. Featuring dual MPPT, Wi-Fi connectivity, built-in DC isolator (DCI), and 24-hour energy consumption monitoring, it ensures optimal performance, safety, and energy insight—all in a compact, user-friendly design.
Key Features:
-
5kW Output Power: Ideal for modern single-phase residential solar systems.
-
2 MPPT / 2 Strings: Maximizes generation from rooftops with multiple orientations or partial shading.
-
Wi-Fi Connectivity: Real-time monitoring via Solplanet’s user-friendly mobile app and cloud portal.
-
Integrated DC Isolator (DCI): Enhances safety and simplifies installation in compliance with standards.
-
24-Hour Consumption Monitoring: Track energy use and self-consumption day and night with built-in monitoring (SPS).
-
High Conversion Efficiency: Up to 98.1% for maximum energy yield.
-
AS4777.2:2020 Compliant: Fully compliant with Australian grid connection standards.
-
IP66 Rated Enclosure: Durable for indoor and outdoor installations.
Description
| Brand | ["Solplanet"] |
|---|---|
| Rating (kW) | 5 |
| Max. DC-Input Capacity | 7500 |
| MPPT | |
| Display Screen | Yes |
| DC Switch | Yes |
| Built-in Battery) | No |
| WiFi | w/ wifi |
| Meter | w/o Meter |
| Use Application | Residential |
| Type | String |
| Phase | Single Phase |
| IP Rating | 66 |
| CEC Model | ASW5000-S-G2 (AS4777-2 2020) |
| Weight (kg) | 9.50 |
| Dimension (L*W*H mm) | 368 * 145 * 325 |
