Description

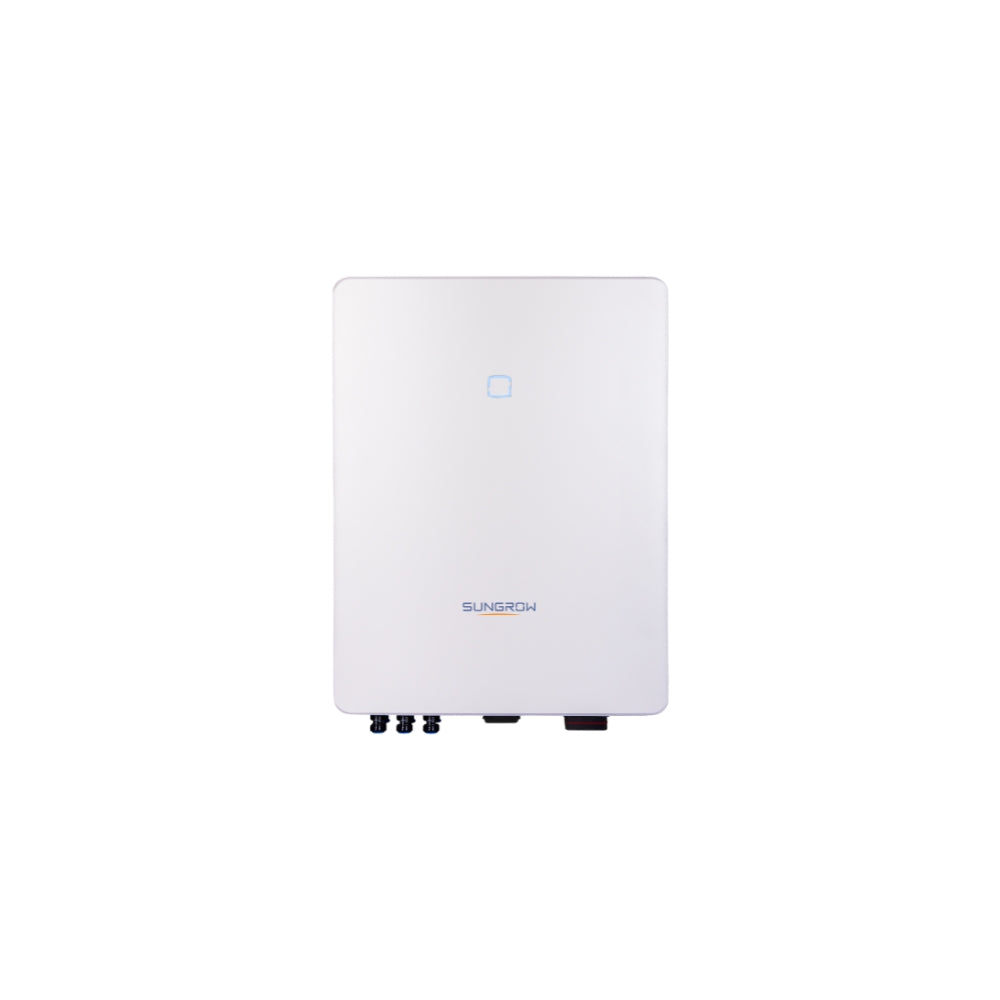

A 10 kW three-phase string/hybrid inverter designed for residential or small-commercial solar systems. Features dual MPPTs for flexible array configurations, built-in Wi-Fi monitoring, DC isolator & protective cover for the DC side, and compact, weather-resistant outdoor-capable design.
Key Features:
-
10 kW three-phase inverter with solar + grid (and battery/hybrid variants)
-
2 MPPTs for flexible solar string layout
-
Built-in Wi-Fi monitoring for remote access
-
DC isolator (DC-ISO) + DC protective cover for safety
-
High DC-input voltage support (~1000 V)
-
Max efficiency up to ~98.5%
-
IP65 rated for outdoor installation
-
Supports multiple strings and bifacial modules
-
Plug-and-play installation; compact and lightweight
-
Advanced protection: surge, arc-fault, anti-islanding
Description
| Rating (kW) | 10 |
|---|---|
| Max. DC-Input Capacity | 15000 |
| MPPT | |
| Display Screen | No |
| DC Switch | Yes |
| Built-in Battery) | No |
| WiFi | w/ wifi |
| Meter | w/o Meter |
| Use Application | Residential |
| Type | String |
| Phase | Three Phase |
| IP Rating | 65 |
| CEC Model | SG10RT (AS4777-2 2020) |
| Weight (kg) | 18.00 |
| Qty per Pallet | 9 |
| Pallet Weight (kg) | 240.00 |
| Dimension (L*W*H mm) | 195 * 370 * 480 |
| Pallet Dimension (L*W*H mm) | 1350 * 860 * 1050 |
| Product Warranty (Years) | 10 |
