Description

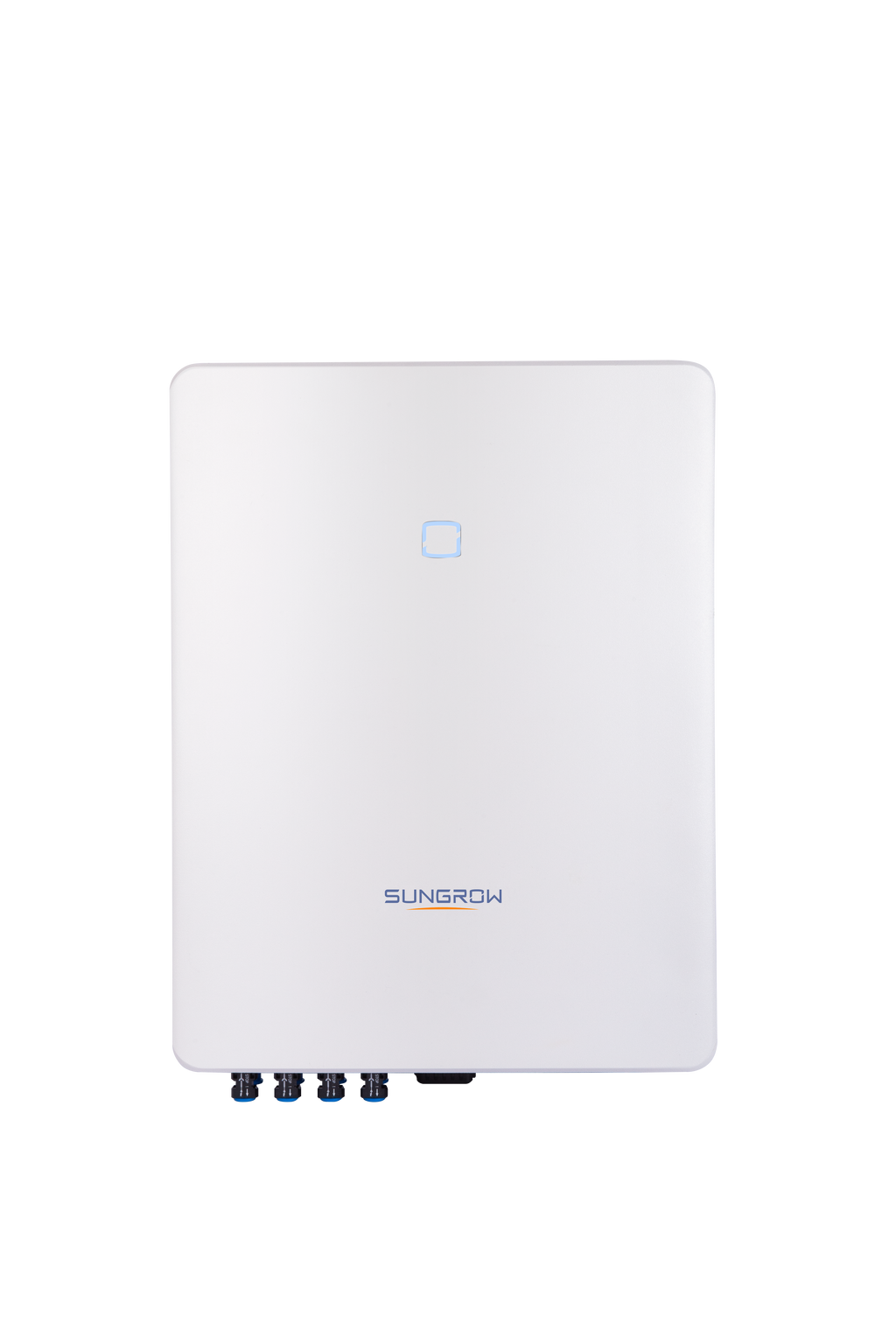

The Sungrow SG20RT is a high-performance 20kW 3-phase solar inverter, engineered for commercial and large residential solar systems. Featuring dual MPPT with 4 strings, this model ensures maximum energy harvesting and system efficiency. It comes without a display but includes built-in WiFi for seamless remote monitoring, a DC isolator for enhanced safety, and integrated DCI (Residual Current Detection) for advanced protection. With its compact, lightweight design and smart O&M functions, the SG20RT offers reliable, efficient, and future-ready solar energy conversion. Ideal for modern solar installations seeking top-tier performance and connectivity.
Description
| Brand | ["Sungrow"] |
|---|---|
| Rating (kW) | 20 |
| Max. DC-Input Capacity | 30000 |
| MPPT | |
| Display Screen | No |
| DC Switch | Yes |
| Built-in Battery) | No |
| WiFi | w/ wifi |
| Meter | w/o Meter |
| Use Application | Residential |
| Type | String |
| Phase | Three Phase |
| IP Rating | 65 |
| CEC Model | SG20RT (AS4777-2 2020) |
| Weight (kg) | 21.00 |
| Qty per Pallet | 9 |
| Pallet Weight (kg) | 240.00 |
| Dimension (L*W*H mm) | 195 * 370 * 480 |
| Pallet Dimension (L*W*H mm) | 1350 * 860 * 1050 |
| Product Warranty (Years) | 10 |
