Description

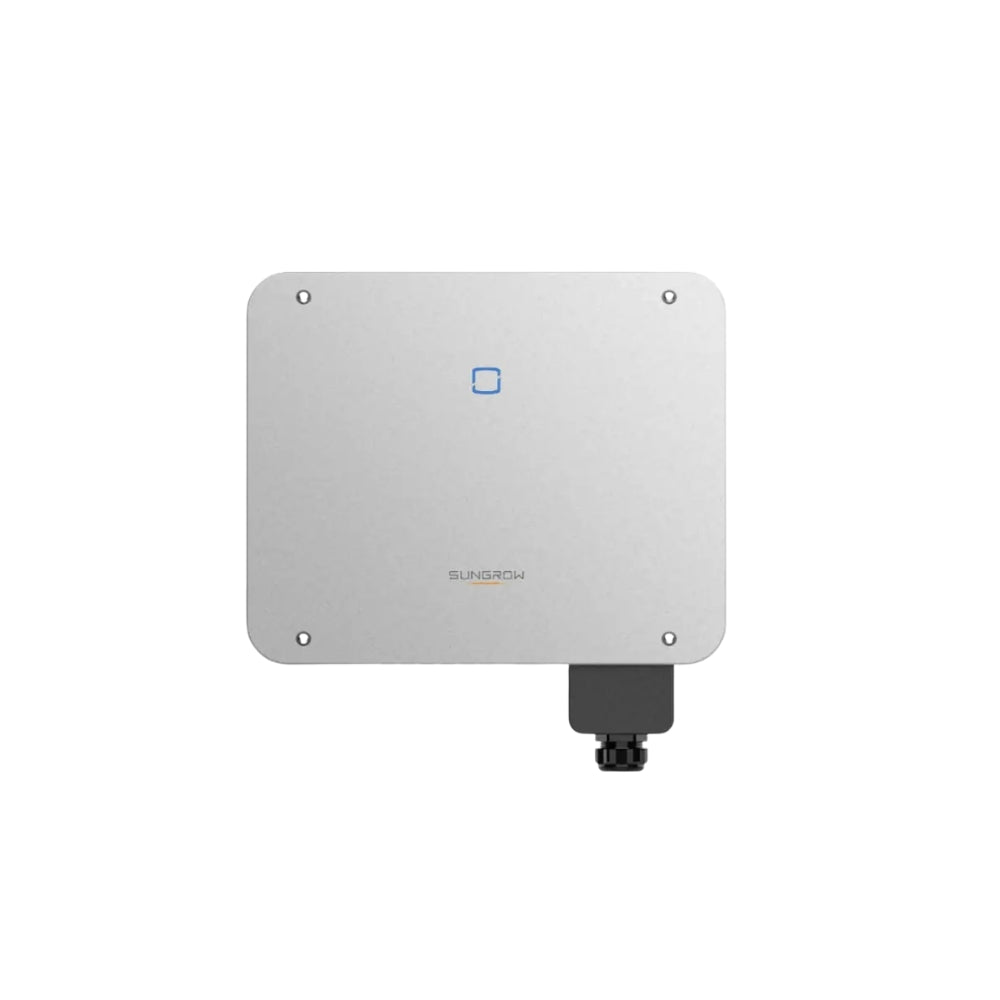

The Sungrow SG30CX-P2 is a 30 kW three-phase string inverter designed for commercial solar installations. It offers 3 MPPTs with up to 6 strings, WiFi connectivity, built-in high-voltage capability (up to ~1000 V DC), DC isolator (DC-ISO) and a protective cover for the DC side. Built for high efficiency, reliability, easy remote monitoring/O&M, and outdoor installation.
Key Features :
-
30 kW 3-phase string inverter (commercial use)
-
3 MPPTs / 6 strings for flexible design
-
Max efficiency up to 98.5 %
-
High DC input voltage (up to 1100 V)
-
Wi-Fi monitoring (no front display)
-
Integrated DC isolator & DC protective cover
-
IP66 & C5 anti-corrosion rated (outdoor-ready)
-
PID recovery & shading optimization
-
Smart O&M with IV curve scan & fault recording
-
Compact, fanless, low-maintenance design
Description
| Rating (kW) | 29.9 |
|---|---|
| Max. DC-Input Capacity | 42000 |
| MPPT | |
| Display Screen | No |
| DC Switch | Yes |
| Built-in Battery) | No |
| WiFi | w/ wifi |
| Meter | w/o Meter |
| Use Application | Residential,Commercial |
| Type | String |
| Phase | Three Phase |
| IP Rating | IP66 |
| CEC Model | SG30CX-P2 (AS4777-2 2020) |
| Weight (kg) | 38.00 |
| Dimension (L*W*H mm) | 645 * 575 * 245 |
| Product Warranty (Years) | 10 |
