Description

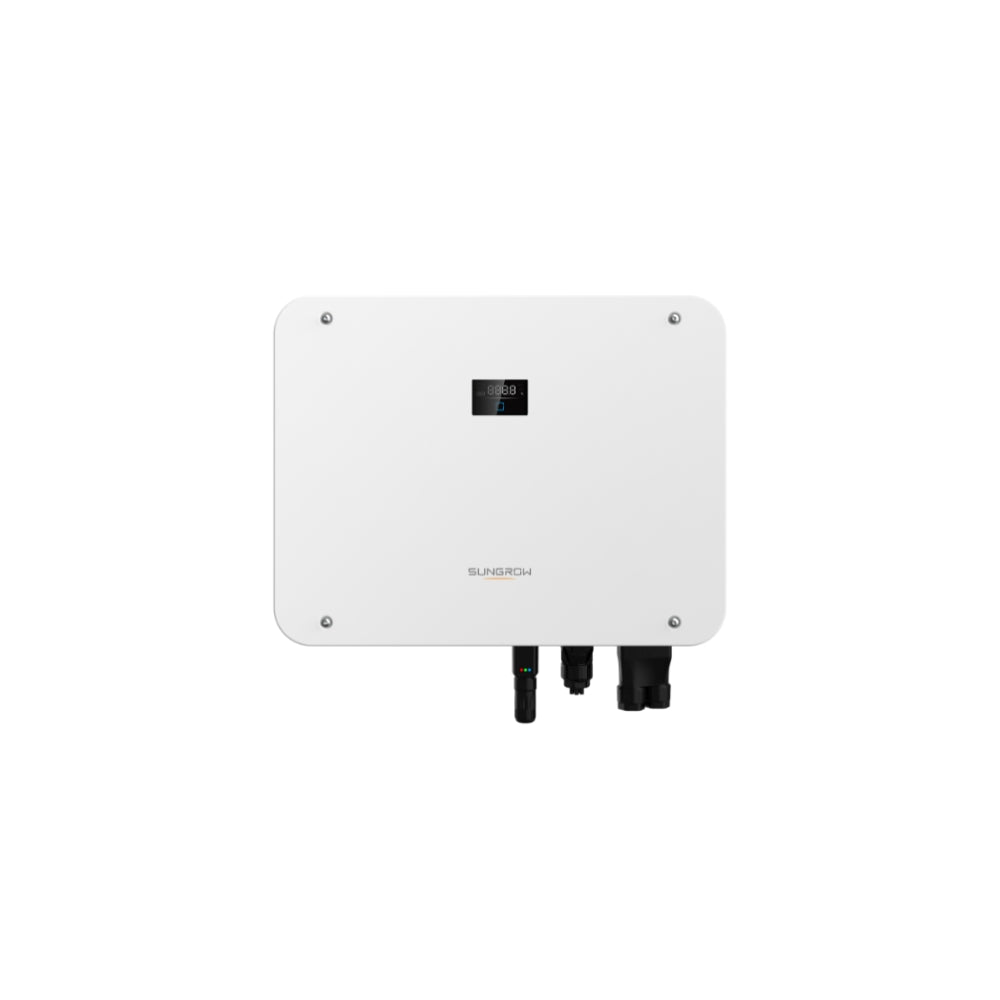

The Sungrow SH25T is a 25 kW three-phase hybrid inverter designed for solar + battery systems. It supports both on-grid and backup operation, offering reliable power even during outages. With 3 MPPTs and Wi-Fi monitoring, it ensures high efficiency and flexible solar configurations — ideal for commercial or large residential installations.
Key Features
-
Hybrid System – Supports solar + high-voltage battery storage.
-
AC Output Power: 25 kW (3-phase).
-
3 MPPTs / 5 Strings – Flexible PV array design.
-
In-built Backup Function – <10 ms switchover for power outages.
-
Wi-Fi + Smart Meter (DTSU666-20 + 6×100 A CTs) for real-time monitoring.
-
DC & AC Protection – Overvoltage, surge, short-circuit, and polarity protection.
-
IP65 Rated – Outdoor installation ready.
-
High Efficiency: Up to 98.2%.
-
Supports Unbalanced Loads – Handles uneven phase loads in backup mode.
-
Integrated DC Protective Cover & Communication Interfaces (RS485, LAN, Wi-Fi).
Description
| Rating (kW) | 25 |
|---|---|
| Max. DC-Input Capacity | 50000 |
| MPPT | |
| Display Screen | Yes |
| DC Switch | Yes |
| Built-in Battery) | No |
| WiFi | w/ wifi |
| Meter | w/ Meter |
| Use Application | Commercial,Residential Hybrid |
| Type | Hybrid HV |
| Phase | Three Phase |
| IP Rating | IP65 |
| CEC Model | SH25T (AS4777-2 2020) |
| Weight (kg) | 40.00 |
| Qty per Pallet | 4 |
| Pallet Weight (kg) | 200.00 |
| Dimension (L*W*H mm) | 245 * 620 * 480 |
| Pallet Dimension (L*W*H mm) | 1200 * 800 * 1050 |
| Product Warranty (Years) | 10 |
