Description

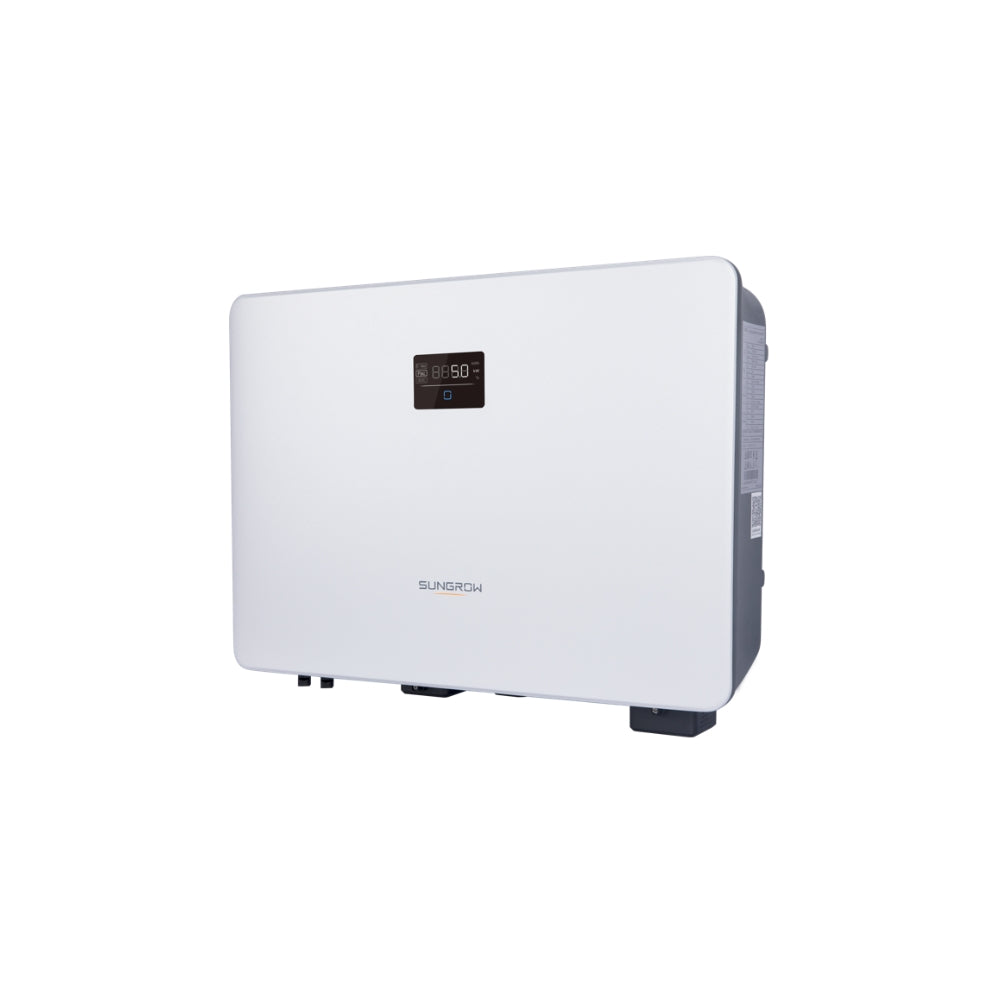

A 5.0 kW single-phase hybrid inverter combining solar generation, grid-tie and battery backup functionality. Equipped with Wi-Fi connectivity, DC isolator (DCI), protective cover for the DC side, built-in backup switching and includes a DTSU666-20 meter plus 2 × 100 A current transformers (CTs) for detailed monitoring.
Key Features
-
5 kW single-phase hybrid inverter (solar + battery)
-
2 MPPTs for flexible solar panel setup
-
Built-in backup with fast switchover (<10 ms)
-
Wi-Fi / Ethernet monitoring via iSolarCloud
-
Includes DTSU666-20 meter + 2 × 100 A CTs
-
High efficiency up to 97.7 %
-
Wide battery voltage range (80–460 V)
-
IP65 weather-proof with DC protective cover
-
Integrated DC isolator (DCI)
-
Surge, AFCI, and anti-islanding protection
Description
| Rating (kW) | 5 |
|---|---|
| Max. DC-Input Capacity | 12000 |
| MPPT | |
| Display Screen | Yes |
| DC Switch | Yes |
| Built-in Battery) | No |
| WiFi | w/ wifi |
| Meter | w/ Meter |
| Use Application | Residential Hybrid |
| Type | Hybrid HV |
| Phase | Single Phase |
| IP Rating | 65 |
| CEC Model | SH5.0RS (AS4777-2 2020) |
| Weight (kg) | 18.50 |
| Dimension (L*W*H mm) | 490 * 340 * 170 |
| Product Warranty (Years) | 10 |
