Description

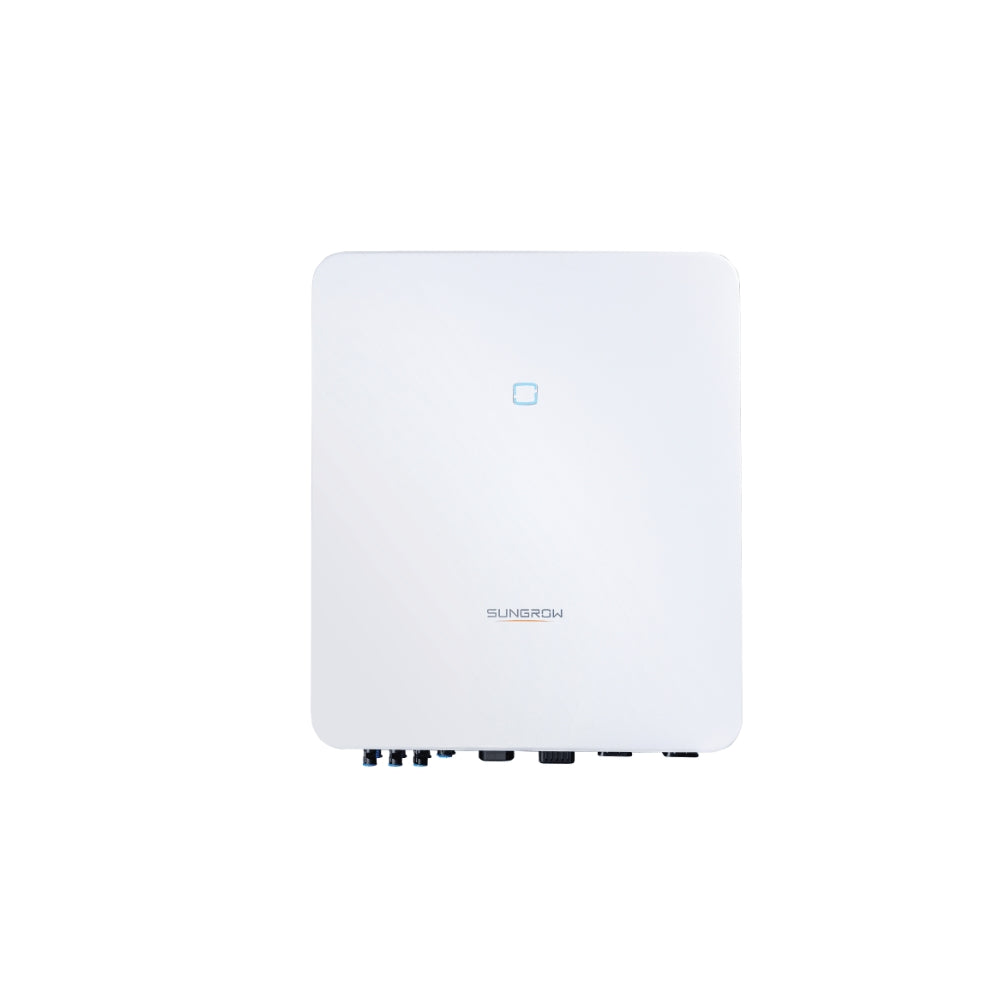

A 5.0 kW three-phase hybrid inverter which integrates solar generation, grid-tie, battery storage and backup capability. Comes with Wi-Fi connectivity, DC isolator (DCI), a DC-protective cover, and includes an energy-meter (DTSU666-20) plus 6 × 100 A current-transformers (CTs) for detailed monitoring.
Key Features
-
5 kW 3-phase hybrid inverter (solar + battery)
-
2 MPPTs for flexible solar setup
-
Built-in backup with fast switchover (< 20 ms)
-
Wi-Fi / Ethernet monitoring via iSolarCloud
-
Includes DTSU666-20 meter + 6 × 100 A CTs
-
High DC input voltage (up to 1000 V)
-
Max efficiency up to 98.4 %
-
IP65 weather-proof with DC protective cover
-
Integrated DC isolator (DCI)
-
Surge, AFCI, and anti-islanding protection
Description
| Rating (kW) | 5 |
|---|---|
| Max. DC-Input Capacity | 7500 |
| MPPT | |
| Display Screen | LED |
| DC Switch | Yes |
| Built-in Battery) | No |
| WiFi | w/ wifi |
| Meter | w/ Meter |
| Use Application | Residential Hybrid |
| Type | Hybrid HV |
| Phase | Three Phase |
| IP Rating | 65 |
| CEC Model | SH5.0RT (AS4777-2 2020) |
| Weight (kg) | 27.00 |
| Qty per Pallet | 6 |
| Pallet Weight (kg) | 180.00 |
| Dimension (L*W*H mm) | 170 * 460 * 540 |
| Pallet Dimension (L*W*H mm) | 1200 * 800 * 900 |
| Product Warranty (Years) | 10 |
