Description

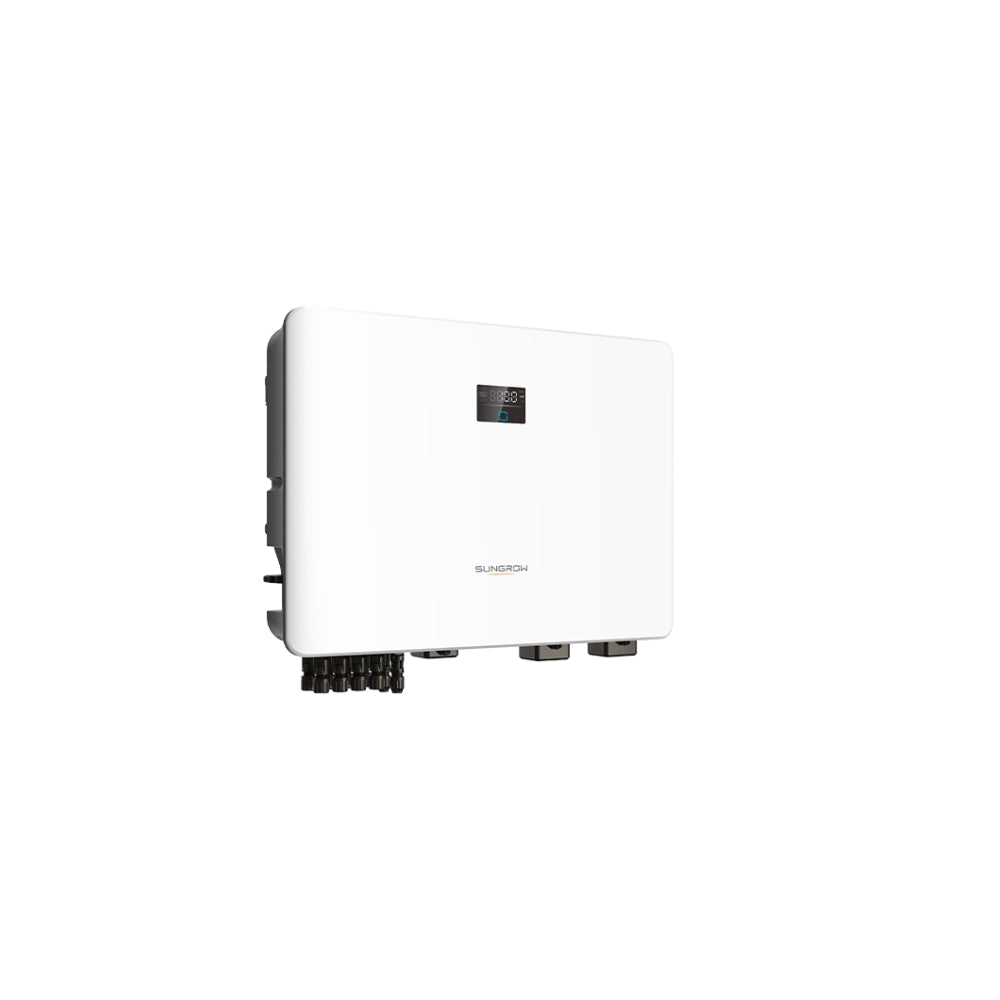

This is a 8 kW single-phase hybrid solar inverter from Sungrow for residential applications. It supports solar + battery + grid integration, has 4 MPPTs for flexible solar string setup, built-in backup capability (for power outages), WiFi connectivity, a DC isolator (DCI), protective cover for DC side, and includes the DTSU666-20 energy meter plus two 100 A current transformers (CTs) for detailed monitoring of generation and consumption.
Key Features:
-
8 kW single-phase hybrid inverter (solar + battery)
-
4 MPPTs for flexible solar design
-
Built-in backup with fast switchover
-
Wi-Fi / Ethernet monitoring via iSolarCloud
-
Includes DTSU666-20 meter + 2 × 100 A CTs
-
High DC input voltage (up to 1000 V)
-
Max efficiency up to ~98 %
-
IP65 weather-proof with DC protective cover
-
Integrated DC isolator (DCI)
-
AFCI, surge, and anti-islanding protection
Description
| Rating (kW) | 8 |
|---|---|
| Max. DC-Input Capacity | 16000 |
| MPPT | |
| Display Screen | Yes |
| DC Switch | Yes |
| Built-in Battery) | No |
| WiFi | w/ wifi |
| Meter | w/ Meter |
| Use Application | Residential Hybrid |
| Type | Hybrid HV |
| Phase | Single Phase |
| IP Rating | 65 |
| CEC Model | SH8.0RS (AS4777-2 2020) |
| Weight (kg) | 29.00 |
| Qty per Pallet | 12 |
| Pallet Weight (kg) | 300.00 |
| Dimension (L*W*H mm) | 181 * 605 * 435 |
| Pallet Dimension (L*W*H mm) | 1200 * 1000 * 1100 |
| Product Warranty (Years) | 10 |
