Description

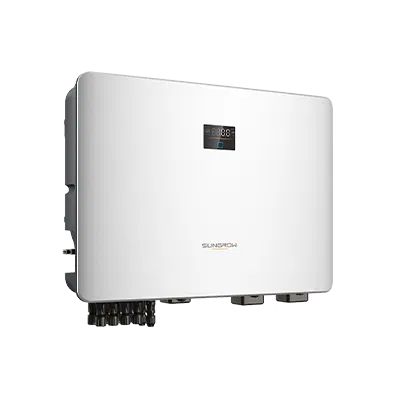

- Hybrid Inverter, 4MPPT, 1ph, SPD II, DC Sw
-
Art. no. 6660658
Specification
| Brand | ["Sungrow"] |
|---|
| Topology | transformerless |
|---|---|
| Charging voltage (V) | 80-460 |
| DC connector type | MC4 |
| UI curve diagnosis | yes |
| Min. temperature ambient (°C) | -25 |
| Protection degree | IP65 |
| AC nominal power (kW) | 9.99 |
| Max. input voltage DC (V) | 600.00 |
| Number of independent MPPT (pcs) | 4 |
| Max. input current DC (A) total | 64.00 |
| Charging current (A) | 50.00 |
| Max. output current (A) | 45.50 |
| Contact for self-consumption optimization (e.g. for heat pump) | 2 |
| Max. short circuit current per MPPT (A) | 20.0\/20.0\/20.0\/20.0 |
| European efficiency (%) | 97.10 |
| Surge protection AC | type 2 |
| Interface 1 | RS485 |
| Total number of string inputs | 4 |
| Battery Connection | DC |
| MPP min. voltage range input (V) | 40.00 |
| Decibel | 45 |
| Max. input current per MPPT (A). | 16.0\/16.0\/16.0\/16.0 |
| Max. AC power (kVA) | 9.99 |
| Start input voltage (V) | 50 |
| Display | w/o display |
| Min. voltage range input (V) | 40 |
| MPP max. voltage range input (V) | 560.00 |
| Max. generator power DC (kWp) | 20.00 |
| Max. efficiency (%) | 97.50 |
| Integrated DC switch | yes |
| Offgrid usable | yes |
| Surge protection DC | type 2 |
| Backup system light | yes |
| Interface 2 | Ethernet |
| Arc Fault Circuit Interrupter | yes |
| Max. short circuit current (A) total | 80.00 |
