Description
- Art. no. 6660706
Specification

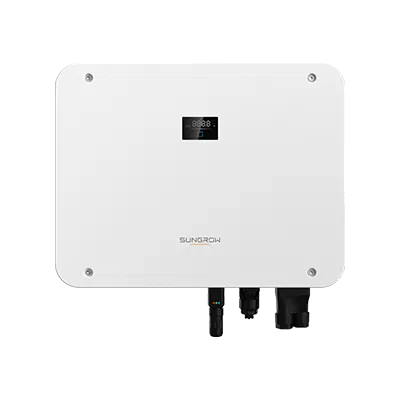

| Brand | ["Sungrow"] |
|---|
| Topology | transformerless |
|---|---|
| Max. generator power DC (kWp) | 30.00 |
| Min. voltage range input (V) | 150 |
| Max. input current per MPPT (A). | 32.0\/32.0\/16.0 |
| MPP min. voltage range input (V) | 150.00 |
| Interface 1 | W-Lan |
| Min. temperature ambient (°C) | -25 |
| Protection degree | IP65 |
| Charging current (A) | 50.00 |
| Number of independent MPPT (pcs) | 3 |
| Contact for self-consumption optimization (e.g. for heat pump) | 2 |
| Max. input voltage DC (V) | 1000.00 |
| Surge protection AC | type 2 |
| Battery Connection | DC |
| MPP max. voltage range input (V) | 950.00 |
| Max. short circuit current (A) total | 100.00 |
| Max. AC power (kVA) | 15.00 |
| Decibel | 35 |
| Display | w/o display |
| Start input voltage (V) | 180 |
| Max. output current (A) | 22.80 |
| Max. efficiency (%) | 98.10 |
| Integrated DC switch | yes |
| Offgrid usable | yes |
| Total number of string inputs | 5 |
| Surge protection DC | type 2 |
| AC nominal power (kW) | 15.00 |
| Backup system light | yes |
| UI curve diagnosis | no |
| Interface 2 | Ethernet |
| DC connector type | MC4 connectable |
| Max. short circuit current per MPPT (A) | 40.0\/40.0\/20.0 |
| Charging voltage (V) | 100-700 |
| European efficiency (%) | 97.60 |
| Max. input current DC (A) total | 80.00 |
