Description

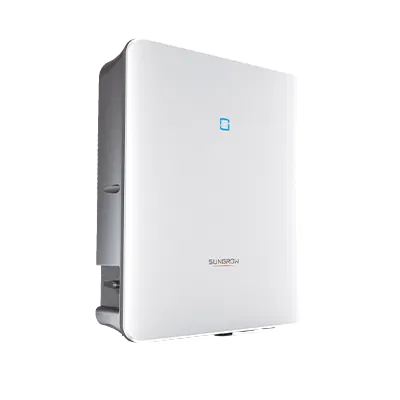

hybrid inverter, 5kW, 2MPPT, 3ph, 220V/380V, 230V/400V, 240V/415V AC, 50Hz, w/DC switch, w/out display, DC/AC SPD Type II, DTSU666-20 and 6x 100A CTs included
- Art. no. 6660619
Specification
| Brand | ["Sungrow"] |
|---|
| Topology | transformerless |
|---|---|
| DC connector type | MC4 |
| Min. voltage range input (V) | 150 |
| MPP min. voltage range input (V) | 150.00 |
| European efficiency (%) | 97.20 |
| Min. temperature ambient (°C) | -25 |
| Protection degree | IP65 |
| Number of independent MPPT (pcs) | 2 |
| Total number of string inputs | 2 |
| Decibel | 30 |
| Max. generator power DC (kWp) | 11.60 |
| Max. input voltage DC (V) | 1000.00 |
| Surge protection AC | type 2 |
| Interface 1 | RS485 |
| Battery Connection | DC |
| AC nominal power (kW) | 5.00 |
| Max. input current per MPPT (A). | 12.5\/12.5 |
| MPP max. voltage range input (V) | 950.00 |
| Charging current (A) | 30.00 |
| Display | w/o display |
| Max. efficiency (%) | 98.00 |
| Start input voltage (V) | 180 |
| Max. short circuit current (A) total | 36.00 |
| Charging voltage (V) | 150-600 |
| Max. short circuit current per MPPT (A) | 18.0\/18.0 |
| Integrated DC switch | yes |
| Max. output current (A) | 7.60 |
| Surge protection DC | type 2 |
| Max. input current DC (A) total | 25.00 |
| Backup system light | yes |
| Max. AC power (kVA) | 5.00 |
| Interface 2 | Ethernet |
| Contact for self-consumption optimization (e.g. for heat pump) | 4 |
