Description

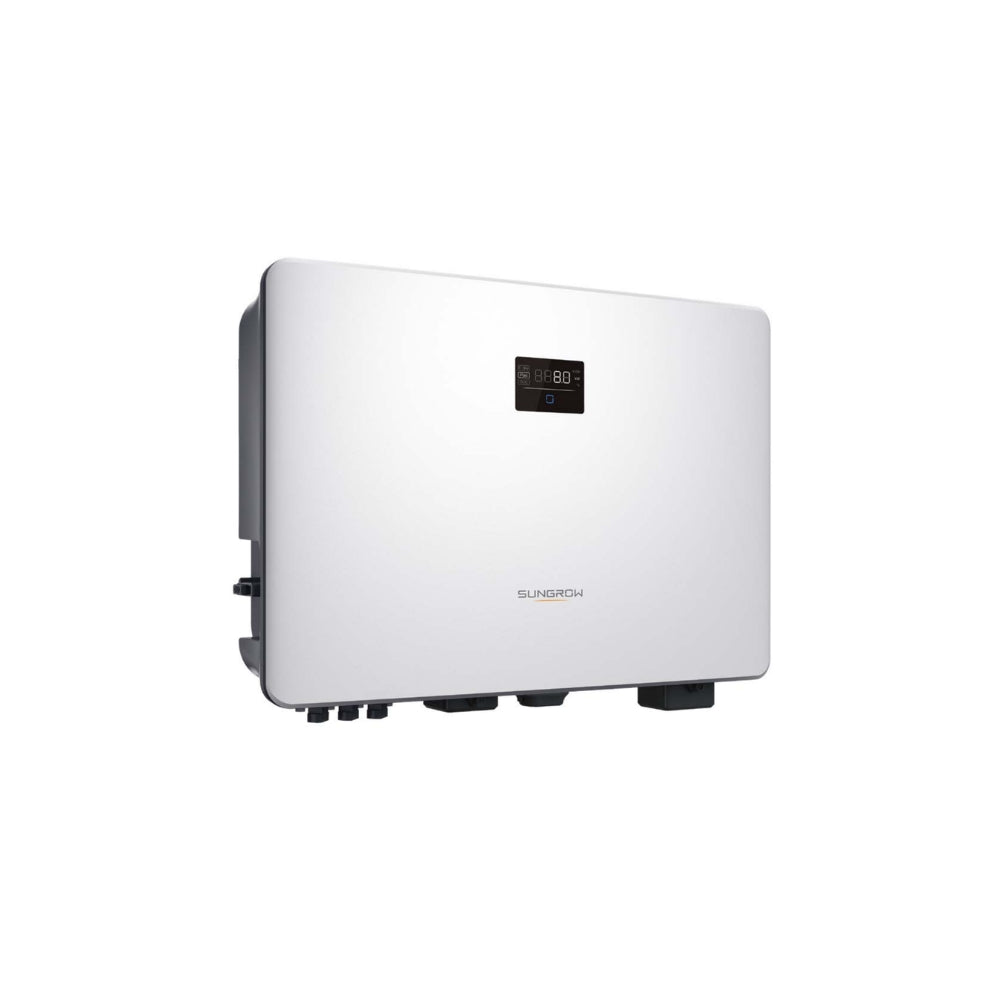

A 10 kW single-phase string inverter built for high-yield residential solar systems. Features three MPPT trackers for flexible panel layouts, WiFi connectivity for remote monitoring, DC isolator (DCI) and protective DC cover for safety, and comes bundled with an S100 meter for energy monitoring.
Key Features :
-
10 kW single-phase string inverter (solar + grid)
-
3 MPPTs for flexible solar design
-
Built-in Wi-Fi for remote monitoring
-
Integrated DC isolator (DCI) & DC protective cover
-
Includes S100 energy meter for monitoring
-
High efficiency up to 97.8 %
-
Wide MPPT voltage range for better performance
-
IP65 weather-proof for outdoor installation
-
Compact, lightweight, and easy to install
-
Supports bifacial and high-power PV modules
Description
| Rating (kW) | 10 |
|---|---|
| Max. DC-Input Capacity | 15000 |
| MPPT | |
| Display Screen | Yes |
| DC Switch | Yes |
| Built-in Battery) | No |
| WiFi | w/ wifi |
| Meter | w/o Meter |
| Use Application | Residential |
| Type | String |
| Phase | Single Phase |
| IP Rating | 65 |
| CEC Model | SG10RS (AS4777-2 2020) |
| Weight (kg) | 19.00 |
| Qty per Pallet | 12 |
| Pallet Weight (kg) | 300.00 |
| Dimension (L*W*H mm) | 170 * 490 * 340 |
| Pallet Dimension (L*W*H mm) | 1200 * 1000 * 1100 |
| Product Warranty (Years) | 10 |
