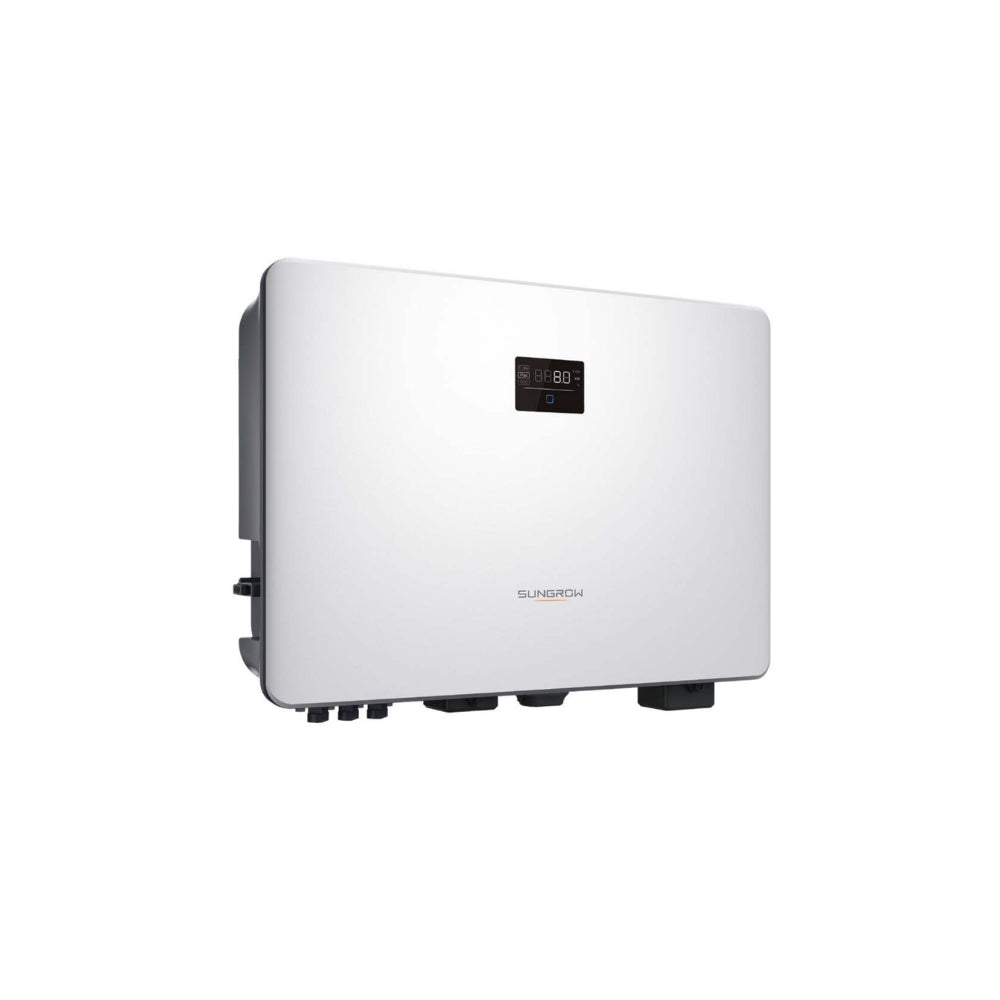

Sungrow SG5.0RS is a 5 kW, single-phase string inverter designed for residential/small commercial solar setups. It features 3 MPPT inputs, built-in WiFi monitoring, an S100 meter included, DC cover and DC isolator (DCI) — offering flexible roof layout support and advanced monitoring.
Key Features:
3 MPPT inputs for flexible string design
Built-in WiFi & S100 smart meter for real-time monitoring
High conversion efficiency up to 97.8 %
Wide MPPT voltage range for higher yield
AFCI protection, Type II DC/AC surge protection, IP65 rated
Compact, lightweight & easy installation
Compatible with bifacial panels and iSolarCloud monitoring system
| Rating (kW) | 5 |
|---|---|
| Max. DC-Input Capacity | 7500 |
| MPPT | |
| Display Screen | Yes |
| DC Switch | Yes |
| Built-in Battery) | No |
| WiFi | w/ wifi |
| Meter | w/o Meter |
| Use Application | Residential |
| Type | String |
| Phase | Single Phase |
| IP Rating | 65 |
| CEC Model | SG5.0RS-ADA (AS4777-2 2020) |
| Weight (kg) | 19.00 |
| Qty per Pallet | 12 |
| Pallet Weight (kg) | 300.00 |
| Dimension (L*W*H mm) | 170 * 490 * 340 |
| Pallet Dimension (L*W*H mm) | 1200 * 1000 * 1100 |
| Product Warranty (Years) | 10 |
