Description

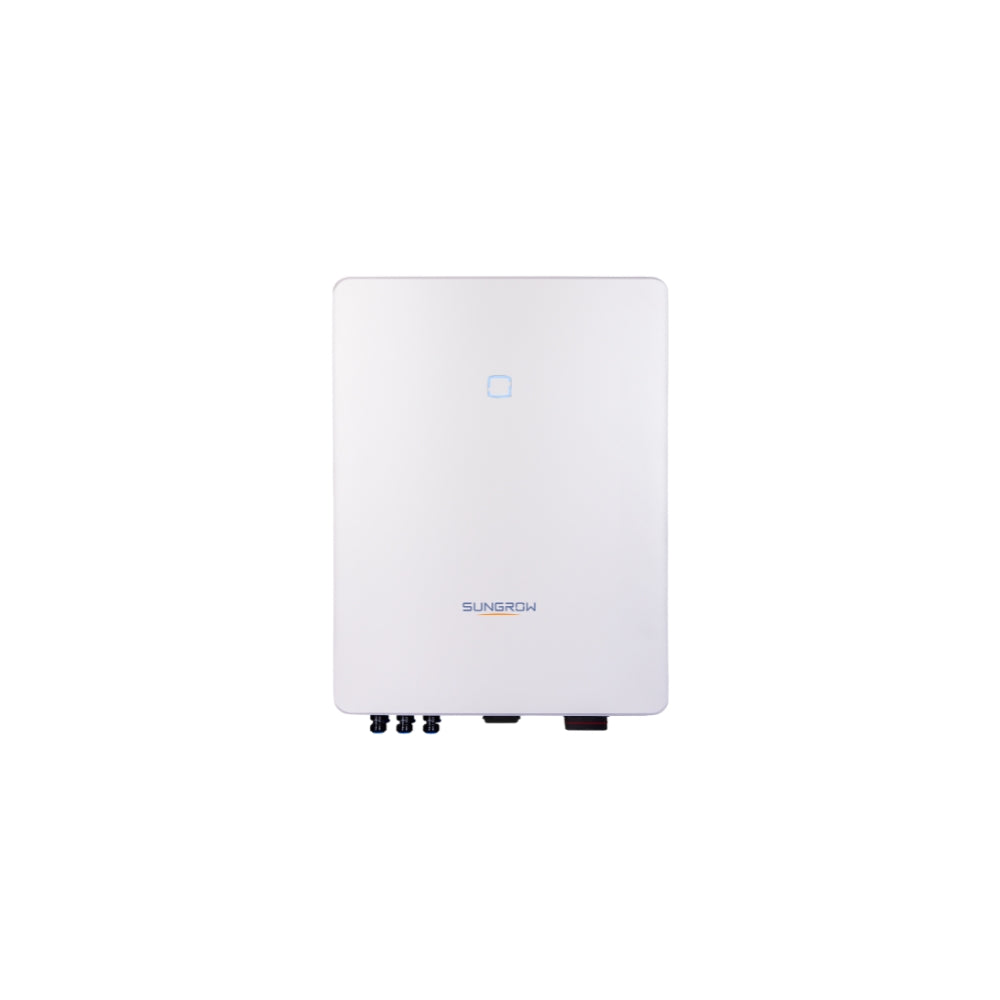

Sungrow SG5.0RT is a 5 kW, 3-phase string inverter designed for grid-connected solar systems. It features two MPPT inputs (allowing 2 independent strings), Wi-Fi connectivity (for monitoring), and a compact, transformerless IP65 rated enclosure—suitable for residential or light commercial use.
Key Features :
-
Dual MPPT (2 independent PV strings)
-
Wide MPPT voltage range & low start-up voltage
-
High efficiency up to 98.4%
-
Built-in WiFi & Ethernet for smart monitoring
-
AFCI, DC/AC surge protection (Type II), IP65 rated
-
Lightweight & compact (≈18 kg)
-
Supports bifacial modules, with PID recovery function
Description
| Rating (kW) | 5 |
|---|---|
| Max. DC-Input Capacity | 7500 |
| MPPT | |
| Display Screen | Yes |
| DC Switch | Yes |
| Built-in Battery) | No |
| WiFi | w/ wifi |
| Meter | w/o Meter |
| Use Application | Residential |
| Type | String |
| Phase | Three Phase |
| IP Rating | 65 |
| CEC Model | SG5.0RT (AS4777-2 2020) |
| Weight (kg) | 18.00 |
| Qty per Pallet | 9 |
| Pallet Weight (kg) | 240.00 |
| Dimension (L*W*H mm) | 195 * 370 * 480 |
| Pallet Dimension (L*W*H mm) | 1350 * 860 * 1050 |
| Product Warranty (Years) | 10 |
