Description

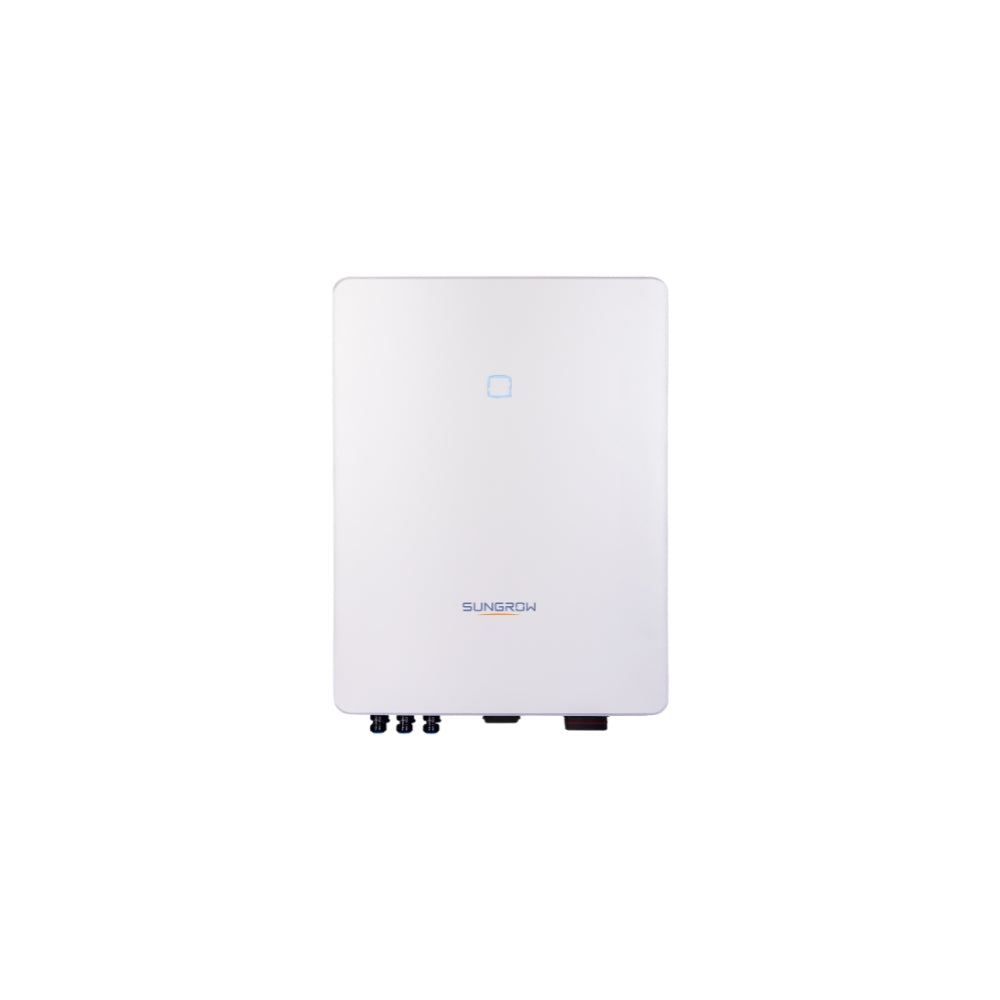

A compact 8 kW three-phase string inverter designed for residential or small-commercial installations. Features include dual MPPT for flexible solar string layout, built-in WiFi connectivity for remote monitoring, DC isolator (DC ISO) and protective DC cover for enhanced safety and durability.
Key Features :
-
8 kW 3-phase string inverter (solar + grid)
-
2 MPPTs / 3 strings for flexible solar setup
-
Max efficiency up to 98.5 %
-
High DC input voltage (up to 1100 V)
-
Built-in Wi-Fi for remote monitoring
-
Integrated DC isolator & DC protective cover
-
IP65 & C5 anti-corrosion rated (outdoor-ready)
-
PID recovery & shading optimization
-
Smart O&M with IV curve scan
-
Compact, fanless, and low-maintenance design
Description
| Rating (kW) | 8 |
|---|---|
| Max. DC-Input Capacity | 12000 |
| MPPT | |
| Display Screen | Yes |
| DC Switch | Yes |
| Built-in Battery) | No |
| WiFi | w/ wifi |
| Meter | w/o Meter |
| Use Application | Residential |
| Type | String |
| Phase | Three Phase |
| IP Rating | 65 |
| CEC Model | SG8.0RT (AS4777-2 2020) |
| Weight (kg) | 18.00 |
| Qty per Pallet | 9 |
| Pallet Weight (kg) | 240.00 |
| Dimension (L*W*H mm) | 195 * 370 * 480 |
| Pallet Dimension (L*W*H mm) | 1350 * 860 * 1050 |
| Product Warranty (Years) | 10 |
