Description

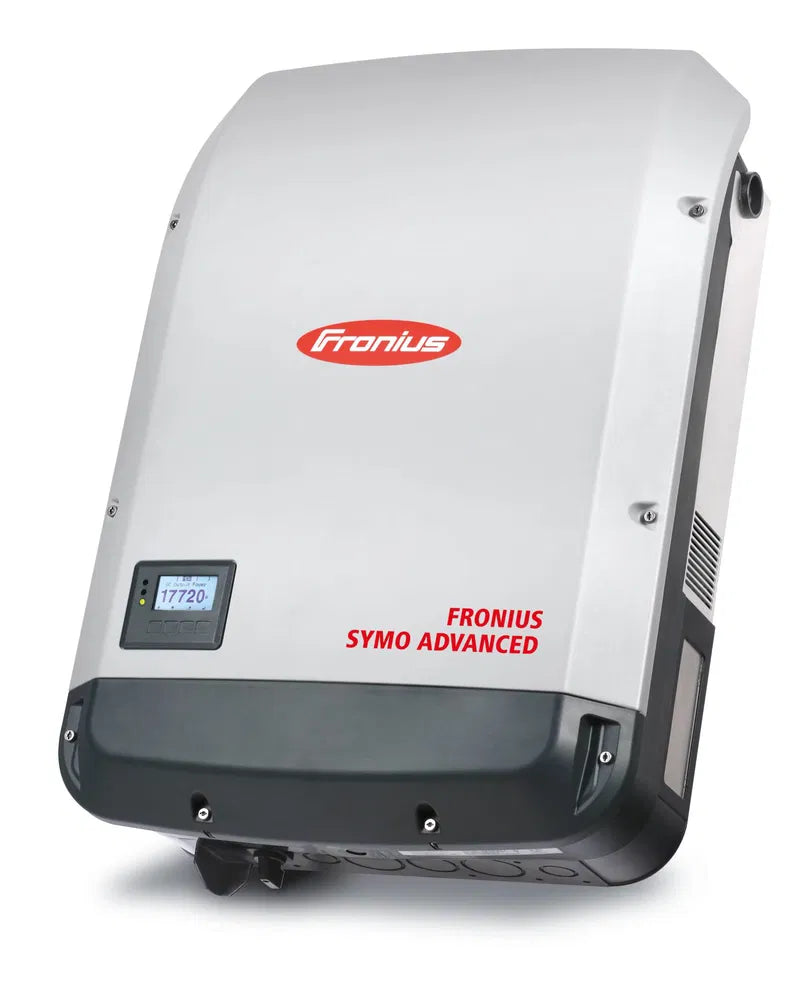

The Symo Advanced series from Fronius is the stable basis for systems from 10 kW upwards. Easy and efficient to combine – even with the GEN24 storage concept. A wide voltage range and high input currents provide the necessary flexibility. Also available in a light version for price-sensitive system configurations.
Product advantages:
- PV-WR, 2 MPPT, 3-phase
- Art. no. 6652872
- Manufacturer No. 4,210,163
- Integrated arc detection
- Extend the warranty to 5 years via online registration
- Cost-effective Com connection in larger systems
Product features:
- AC power: 20.0 kW
- AC connection: 400 V, 3-phase
- Number of MPPT: 2
- DC input current: MPPT 1 - 33.0 A, MPPT 2 – 27.0 A (15 - 20)
- Communication: 2 x RS485 (Fronius Solar Net), WLAN, 2 x Ethernet, 2 x RS485
- Interfaces: 6 x DI (FRE), 6 x DO
- Cooling: active
- Dimensions: 725 x 510 x 225 mm (H x W x D)
- Weight: 42.0 kg
- Warranty: 2 years
Specification
| Brand | ["Fronius"] |
|---|
| Topology | transformerless |
|---|---|
| Max. generator power DC (kWp) | 30.00 |
| Total number of string inputs | 6 |
| Interface 2 | W-Lan |
| Min. voltage range input (V) | 200 |
| Min. temperature ambient (°C) | -25 |
| Protection degree | IP66 |
| Number of independent MPPT (pcs) | 2 |
| Max. short circuit current per MPPT (A) | 68,0\/55,7 |
| Start input voltage (V) | 200 |
| Display | with display |
| Max. input voltage DC (V) | 1000.00 |
| Degree of protection IP | IP66 |
| Max. AC power (kVA) | 20.00 |
| Interface 1 | Ethernet |
| European efficiency (%) | 97.90 |
| Step-Up converter | yes |
| DC connector type | screw-type terminal |
| AC nominal power (kW) | 20.00 |
| Max. short circuit current (A) total | 123.70 |
| MPP min. voltage range input (V) | 200.00 |
| Max. efficiency (%) | 98.10 |
| Integrated DC switch | yes |
| MPP max. voltage range input (V) | 800.00 |
| Max. input current DC (A) total | 51.00 |
| Max. input current per MPPT (A). | 33,0\/27,0 |
| Contact ripple control receiver | yes |
| Arc Fault Circuit Interrupter | yes |
| Max. output current (A) | 30.30 |
| Shadow management | yes |
