Description

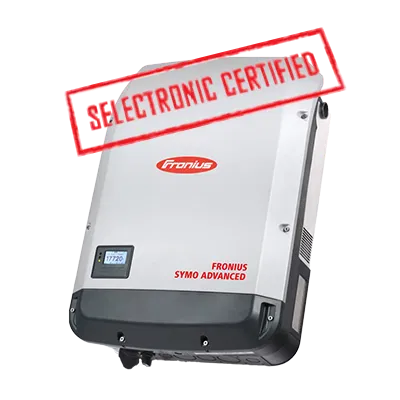

inverter, Selectronic Certified, 20kW, 2MPPT, 3ph, 220V/380V, 230V/400V AC, 50/60Hz, w/display, w/DC switch, WLAN-SCERT 5 + 5 Years Fronius Warranty Plus (After Free Registration)
- Art. no. 6660695
- Manufacturer No. 4,210,163/005407
Specification
| Brand | ["Fronius"] |
|---|
| Topology | transformerless |
|---|---|
| Max. generator power DC (kWp) | 30.00 |
| Interface 1 | W-Lan |
| Total number of string inputs | 6 |
| Min. voltage range input (V) | 200 |
| Min. temperature ambient (°C) | -25 |
| Protection degree | IP66 |
| Interface 2 | RS485 |
| Number of independent MPPT (pcs) | 2 |
| Start input voltage (V) | 200 |
| Display | with display |
| Max. output current (A) | 28.90 |
| Surge protection AC | type 3 |
| Max. input voltage DC (V) | 1000.00 |
| Max. AC power (kVA) | 20.00 |
| DC connector type | screw-type terminal |
| AC nominal power (kW) | 20.00 |
| Max. short circuit current (A) total | 123.70 |
| Max. input current per MPPT (A). | 33.0\/27.0 |
| MPP min. voltage range input (V) | 200.00 |
| Integrated DC switch | yes |
| MPP max. voltage range input (V) | 800.00 |
| Max. input current DC (A) total | 51.00 |
| Max. efficiency (%) | 97.90 |
| Surge protection DC | type 2 |
| Max. short circuit current per MPPT (A) | 68.0\/55.7 |
| Arc Fault Circuit Interrupter | yes |
| European efficiency (%) | 97.60 |
