Description

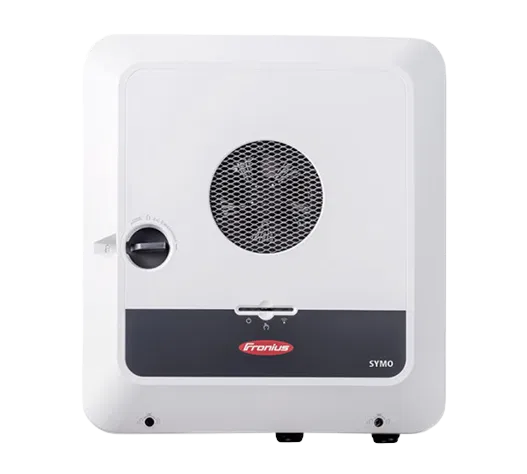

Even an innovative system like the Fronius GEN24 constantly needs new impulses for improvement. The Primo and Symo series are now available with the storage connection still deactivated at the factory. You decide for yourself whether and when you want to use this function by means of an activation code. Of course, you will still receive the familiar version with the battery port already activated - distinguished by the “plus” after the GEN24 in the device name. The smart PV-Point emergency power connection with a maximum output power of 3 kW is active in every version. All other functions and interfaces remain the same.
Product advantages:
- Hybrid inverter, 2 MPPT, 3-phase
- Art. no. 6642442
- Manufacturer No. 4,210,153,002
- Storage connection already activated
- Emergency power via Fronius PV-Point
- Backup power possible with Enwitec switchover device
Product features:
- AC power: 6.0 kW
- Number of MPPT: 2
- DC input current: MPPT 1 - 25.0 A, MPPT 2 - 12.5 A
- Battery connection: active
- AC connection: 3-phase
- Communication: WLAN, 2 x Ethernet, 2 x RS485
- Interfaces: 6 x DI (FRE), 6 x DO
- Protection class: IP66
- Cooling: active
- Dimensions: 595 x 529 x 180 mm (H x W x D)
- Weight: 23.4 kg
Description
| Brand | ["Fronius"] |
|---|
| Topology | transformerless |
|---|---|
| Start input voltage (V) | 80 |
| Total number of string inputs | 6 |
| Min. temperature ambient (°C) | -25 |
| Backup system full | yes with supply |
| Backup system light | no |
| Protection degree | IP66 |
| Number of independent MPPT (pcs) | 2 |
| Arc Fault Circuit Interrupter | no |
| Surge protection AC | type 3 |
| Max. generator power DC (kWp) | 9.00 |
| Max. input voltage DC (V) | 1000.00 |
| Degree of protection IP | IP66 |
| Interface 1 | RS485 |
| Max. AC power (kVA) | 6.00 |
| Battery Connection | AC/DC |
| Max. output current (A) | 8.70 |
| Step-Up converter | yes |
| Charging voltage (V) | 160-500 |
| Display | w/o display |
| Decibel | 47 |
| MPP min. voltage range input (V) | 80.00 |
| Max. efficiency (%) | 98.20 |
| DC connector type | spring-type terminal |
| Integrated DC switch | yes |
| Min. voltage range input (V) | 80 |
| MPP max. voltage range input (V) | 800.00 |
| Max. short circuit current per MPPT (A) | 40\/20 |
| Surge protection DC | type 2 |
| Max. input current DC (A) total | 37.50 |
| Contact ripple control receiver | yes |
| Interface 2 | Ethernet |
| Contact for self-consumption optimization (e.g. for heat pump) | 4 |
| Max. input current per MPPT (A). | 25\/12,5 |
| Max. short circuit current (A) total | 60.00 |
| AC nominal power (kW) | 6.00 |
| Charging current (A) | 22.00 |
| European efficiency (%) | 97.70 |
