Description

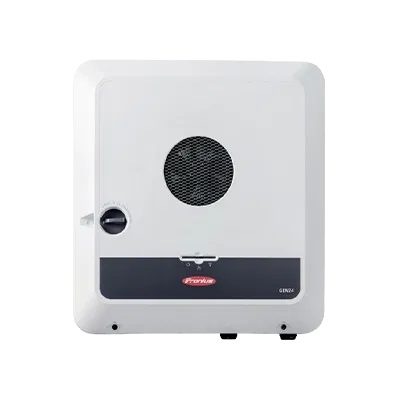

hybrid inverter, 8kW, 2MPPT, 3ph, 220V/380V, 230V/400V AC, 50/60Hz, w/out display, w/DC switch 5 + 5 Years Fronius Warranty Plus (After Free Registration)
- Art. no. 6660647
- Manufacturer No. 4,210,185
Specification
| Brand | ["Fronius"] |
|---|
| Topology | transformerless |
|---|---|
| Start input voltage (V) | 80 |
| Max. generator power DC (kWp) | 12.00 |
| Min. temperature ambient (°C) | -25 |
| Backup system full | yes with supply |
| Backup system light | no |
| Max. output current (A) | 12.10 |
| Protection degree | IP66 |
| Interface 2 | RS485 |
| Number of independent MPPT (pcs) | 2 |
| Contact for self-consumption optimization (e.g. for heat pump) | 2 |
| Max. input voltage DC (V) | 1000.00 |
| Interface 1 | Ethernet |
| Battery Connection | AC/DC |
| European efficiency (%) | 98.00 |
| Display | w/o display |
| Max. input current DC (A) total | 42.00 |
| Decibel | 47 |
| Max. input current per MPPT (A). | 28.0\/14.0 |
| MPP min. voltage range input (V) | 80.00 |
| DC connector type | spring-type terminal |
| Integrated DC switch | yes |
| Min. voltage range input (V) | 80 |
| MPP max. voltage range input (V) | 800.00 |
| Offgrid usable | no |
| Total number of string inputs | 3 |
| AC nominal power (kW) | 8.00 |
| Contact ripple control receiver | yes |
| Max. short circuit current per MPPT (A) | 40.0\/20.0 |
| Charging voltage (V) | 160-700 V |
| Max. short circuit current (A) total | 60.00 |
| Max. efficiency (%) | 98.30 |
| Charging current (A) | 22.00 |
| Max. AC power (kVA) | 8.00 |
