Description

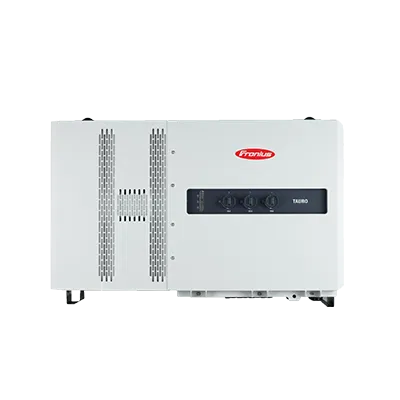

inverter, 50kW, 3MPPT, 3ph, 220V/380V, 230V/400V AC, 50/60Hz, w/DC switch, WLAN/LAN/Webserver, DC/AC SPD Type 1+2, 30A fuses, single core AC connection plate
5 + 5 Years Fronius Warranty Plus (After Free Registration)
- Art. no. 6660776
- Manufacturer No. 4,210,300,002
Specification
| Brand | ["Fronius"] |
|---|
| Max. AC power (kVA) | 50.00 |
|---|---|
| Topology | transformerless |
| Grid protection | no |
| DC connector type | MC4 |
| Max. short circuit current per MPPT (A) | 72.0\/72.0\/125.0 |
| Max. input current per MPPT (A). | 36.0\/36.0\/72.0 |
| Min. temperature ambient (°C) | -40 |
| MPP min. voltage range input (V) | 400.00 |
| Surge protection AC | type 1 and type 2 |
| Min. voltage range input (V) | 200 |
| Protection degree | IP65 |
| Interface 2 | RS485 |
| Start input voltage (V) | 200 |
| European efficiency (%) | 98.10 |
| MPP max. voltage range input (V) | 870.00 |
| Number of independent MPPT (pcs) | 3 |
| Max. input voltage DC (V) | 1000.00 |
| Interface 1 | Ethernet |
| Max. efficiency (%) | 98.60 |
| Max. input current DC (A) total | 134.00 |
| Max. output current (A) | 76.00 |
| Integrated DC switch | yes |
| Max. short circuit current (A) total | 269.00 |
| AC nominal power (kW) | 50.00 |
| Max. generator power DC (kWp) | 75.00 |
| Surge protection DC | type 1 and type 2 |
| Total number of string inputs | 14 |
