Description
Fronius inverters come with a standard 2-year warranty. The warranty period can be extended to up to 10 years free of charge by registering at ww
Includes

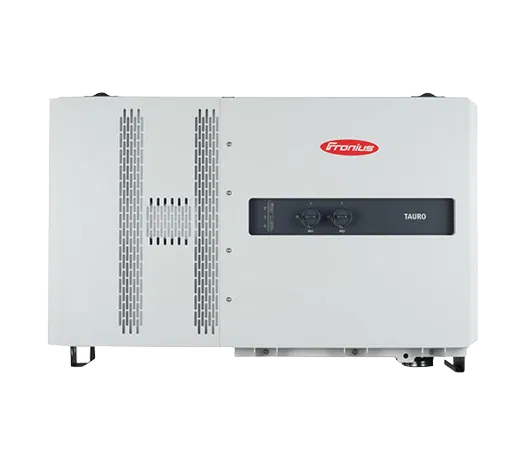

- string inverter for decentralized systems
- Art. no. 6643816
- Manufacturer No. 4,210,302
- Type 1 + 2 surge protection (AC + DC)
- 20 A fuses
- AC section with multicore connection (for easy installation of multicore cables)
If the device is registered within 30 months, the warranty can be extended by 3 years (total of 5 years, ‘Fronius Warranty Plus’, covering the costs of materials, service and transport).
Specification
| Brand | ["Fronius"] |
|---|
| Topology | transformerless |
|---|---|
| DC connector type | MC4 |
| Min. temperature ambient (°C) | -40 |
| MPP max. voltage range input (V) | 930.00 |
| Surge protection AC | type 1 and type 2 |
| Step-Up converter | no |
| Protection degree | IP65 |
| Max. short circuit current per MPPT (A) | 355 |
| Arc Fault Circuit Interrupter | no |
| Max. generator power DC (kWp) | 150.00 |
| MPP min. voltage range input (V) | 580.00 |
| Max. input current DC (A) total | 175.00 |
| Total number of string inputs | 22 |
| Start input voltage (V) | 650 |
| Max. AC power (kVA) | 100.00 |
| Max. input voltage DC (V) | 1000.00 |
| Interface 1 | RS485 |
| Max. efficiency (%) | 98.50 |
| Max. output current (A) | 152.00 |
| Display | w/o display |
| Number of independent MPPT (pcs) | 1 |
| Max. input current per MPPT (A). | 175 |
| Degree of protection IP | IP65 |
| Min. voltage range input (V) | 580 |
| Max. short circuit current (A) total | 355.00 |
| AC nominal power (kW) | 100.00 |
| Integrated DC switch | yes |
| Contact ripple control receiver | yes |
| Interface 2 | Ethernet |
| European efficiency (%) | 98.20 |
| Surge protection DC | type 1 and type 2 |
